PRODUCT RANGE
Carbide tools organised around how customers buy.
Choose imperial or metric dimensions, then compare the available geometry and size variants.
INCH-STANDARD DRAWINGS
Imperial tools
15 specifications across tapered ball nose, roughing and downcut tools. Inch dimensions are shown first with millimetre equivalents for checking.
METRIC DRAWINGS
Metric tools
30 specifications across tapered ball nose and micro flat end mills, with millimetre-first selection.
Product families
Tapered ball nose
33 imperial and metric specifications for detailed 3D contouring and finishing.
Micro flat end mills
5 metric specifications from 0.2 mm for miniature slots and fine features.
Roughing end mills
6 imperial specifications for efficient stock removal.
Downcut end mill
1 imperial specification for downward chip control.
Buying routes
Standard products can be ordered online after prices are approved. Orders of 20 pieces or more may request project pricing, while custom geometry is handled through a separate engineering enquiry.
HWAYNCT PRODUCT CATALOG
Full product catalogue
Every approved specification below includes matched images, dimensions, material, coating and pack-price status.
Imperial Carbide End Mills 15 specifications
HW-TB-I-001
Tapered Ball Nose End Mill
R0.1 mm · Shank 3.175 mm · FL 15 mm · OAL 38 mm
2 flutes · HRC55 · TiSiN
Price pending

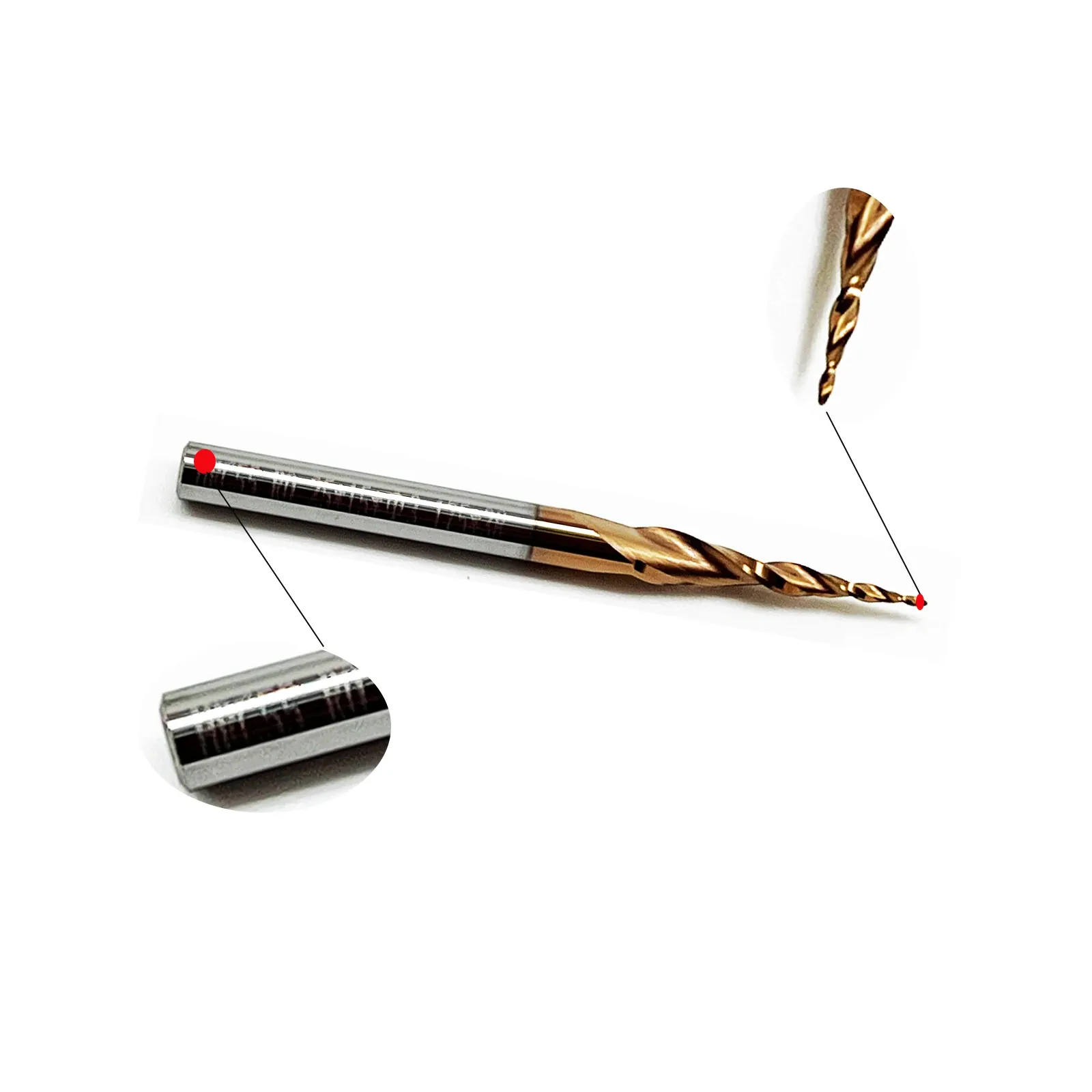

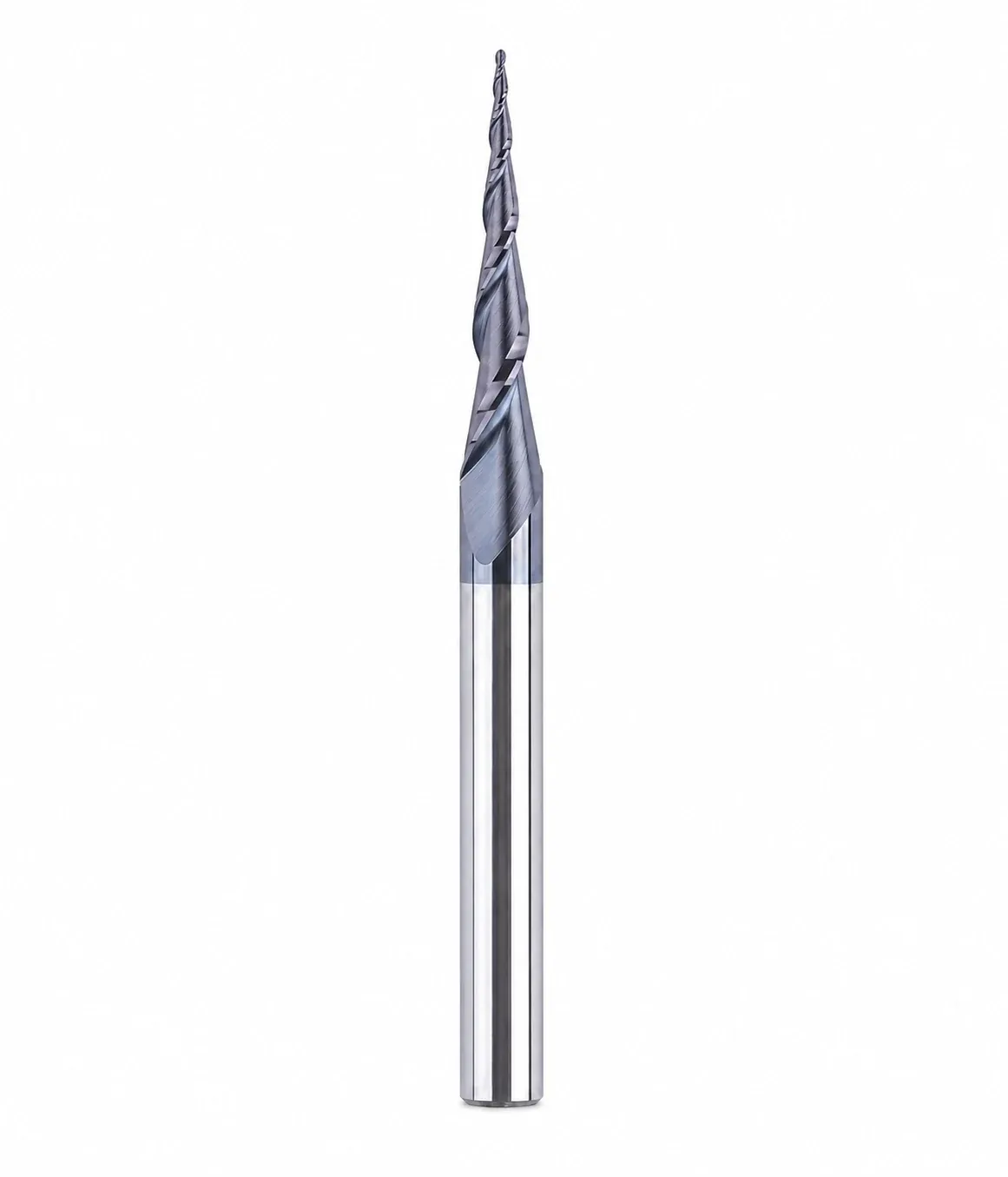

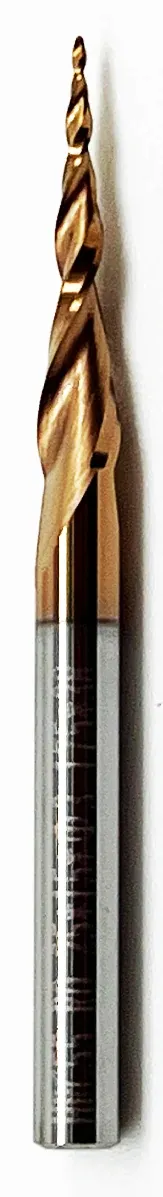

HW-TB-I-002
Tapered Ball Nose End Mill
R0.25 mm · Shank 3.175 mm · FL 15 mm · OAL 38 mm
2 flutes · HRC55 · TiSiN
Q5 $33.99

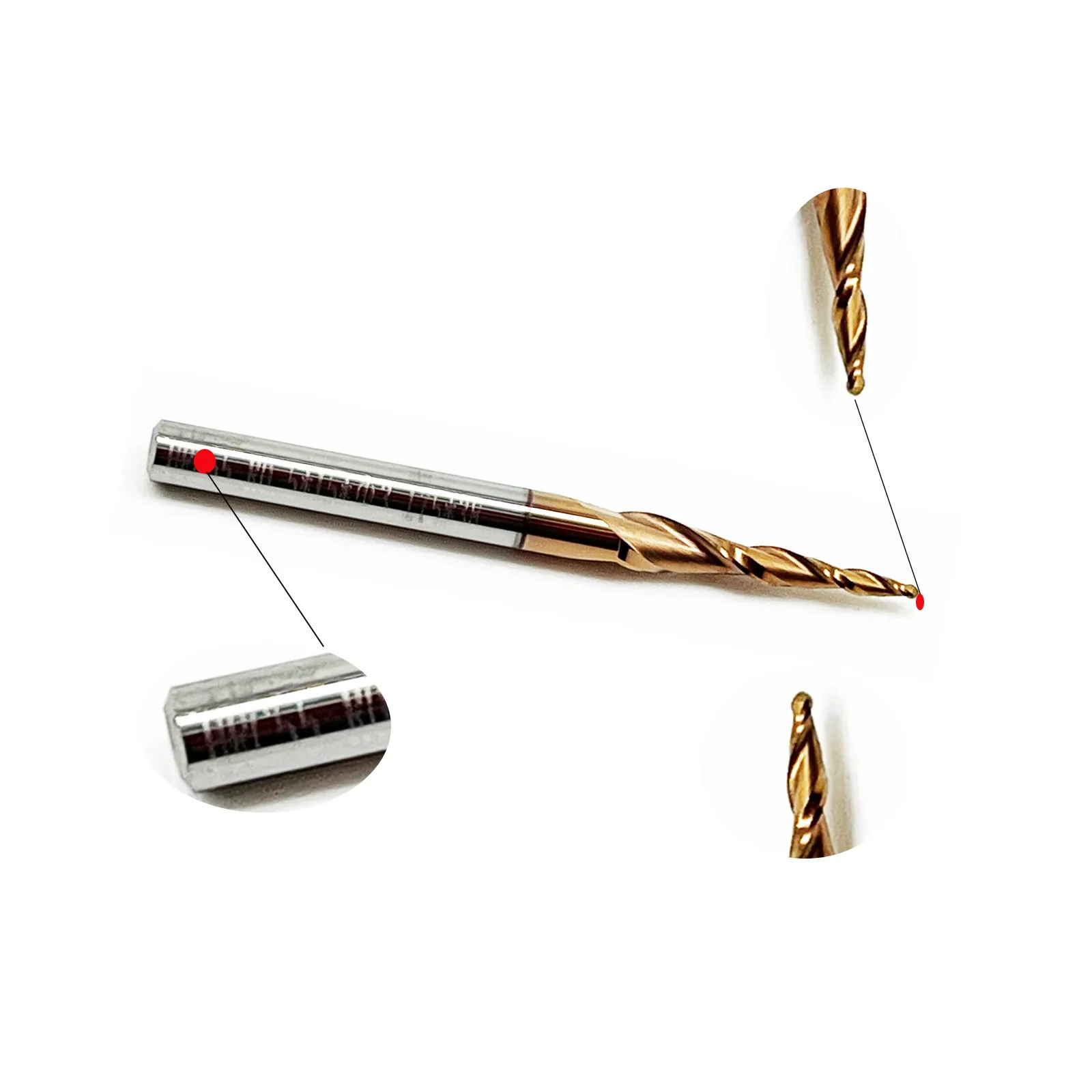

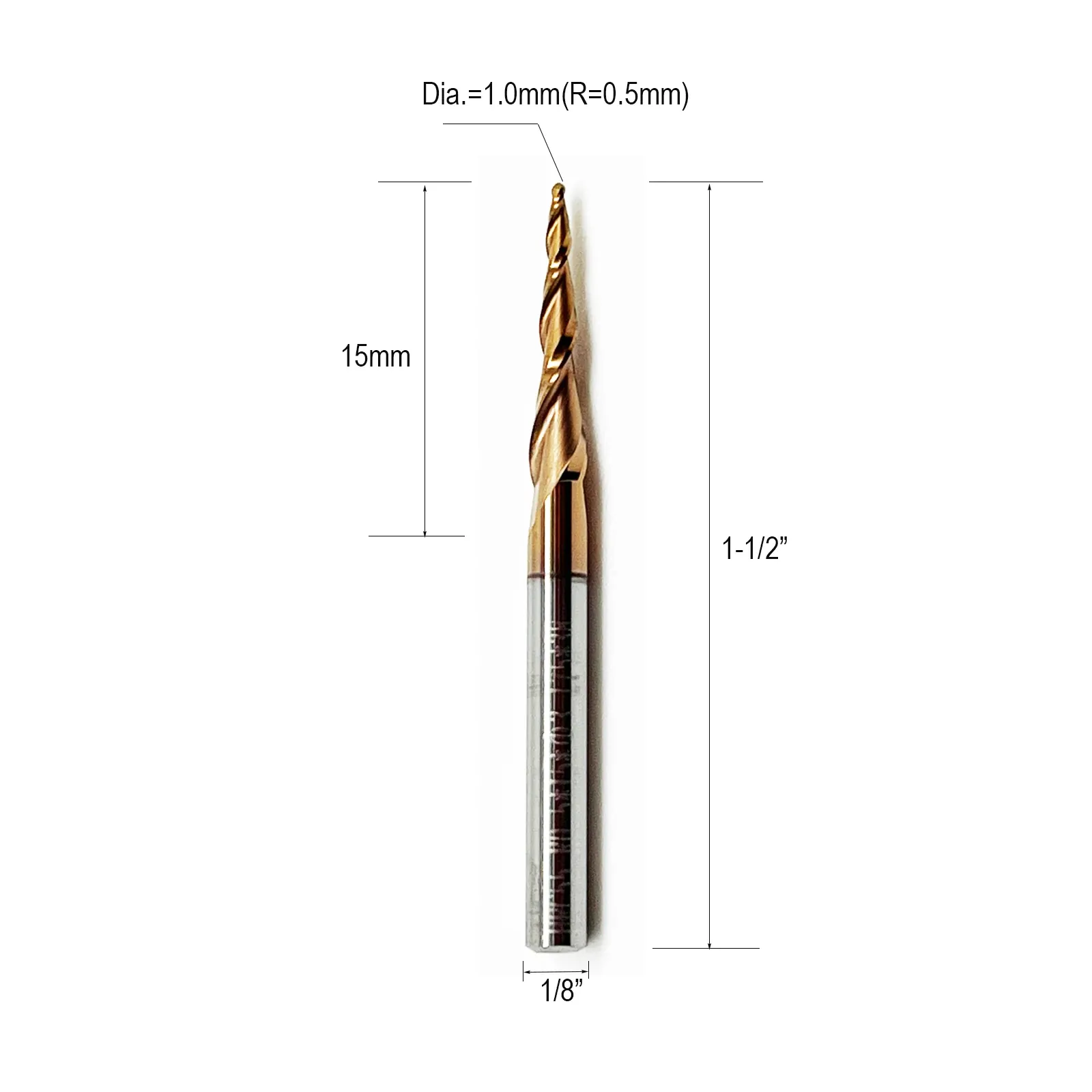

HW-TB-I-003
Tapered Ball Nose End Mill
R0.5 mm · Shank 3.175 mm · FL 15 mm · OAL 38 mm
2 flutes · HRC55 · TiSiN
Q5 $33.99

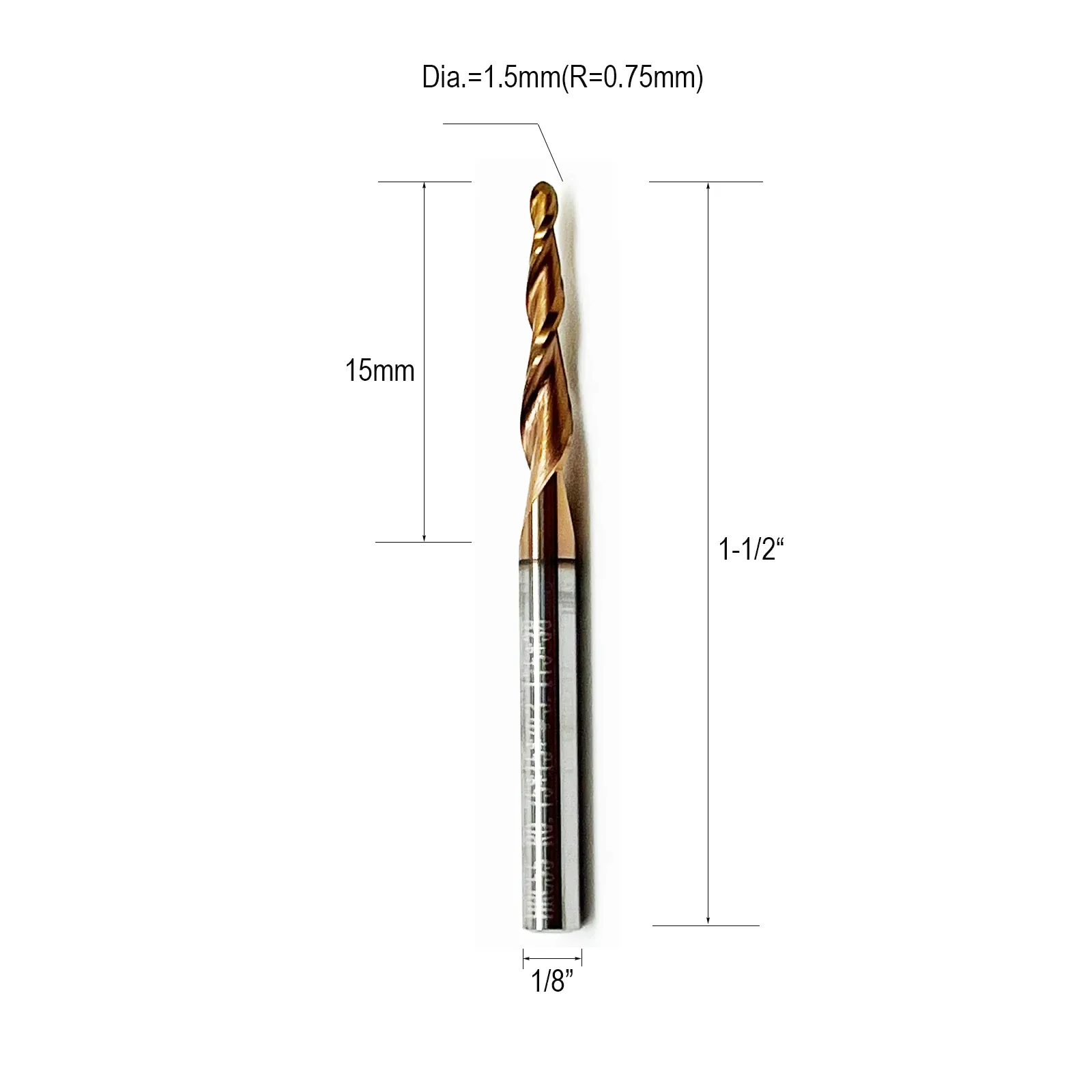

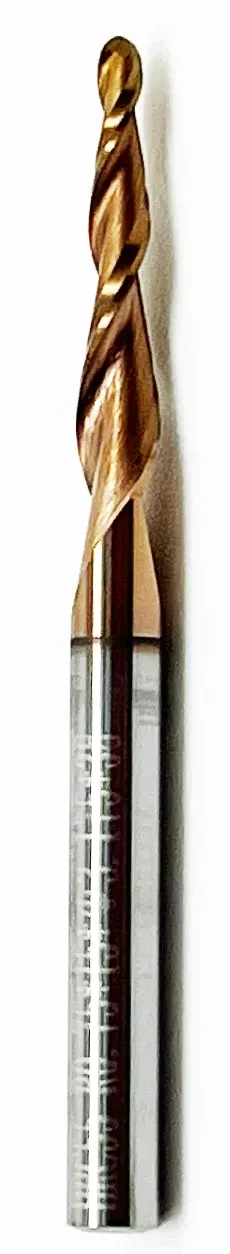

HW-TB-I-004
Tapered Ball Nose End Mill
R0.75 mm · Shank 3.175 mm · FL 15 mm · OAL 38 mm
2 flutes · HRC55 · TiSiN
Q5 $33.99

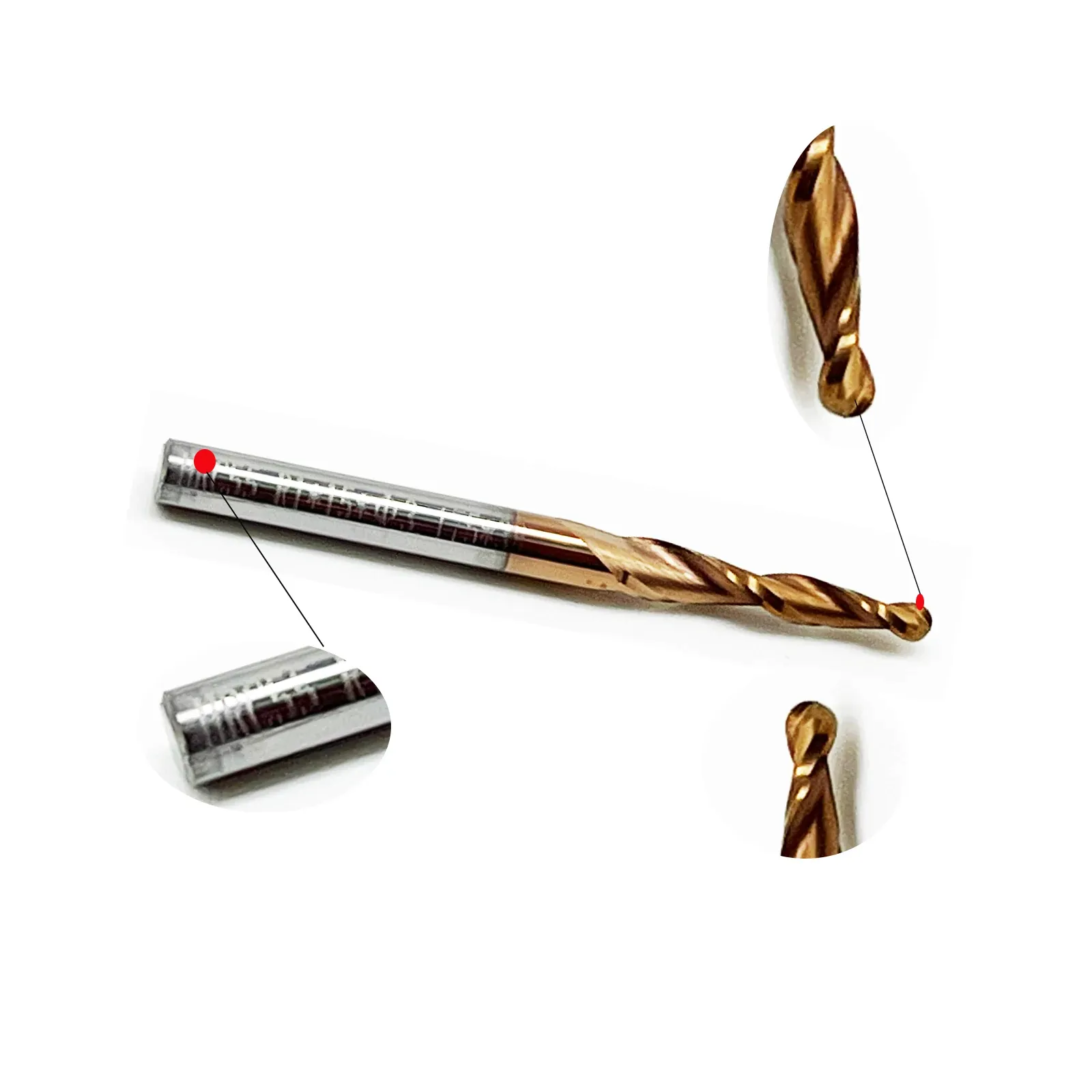

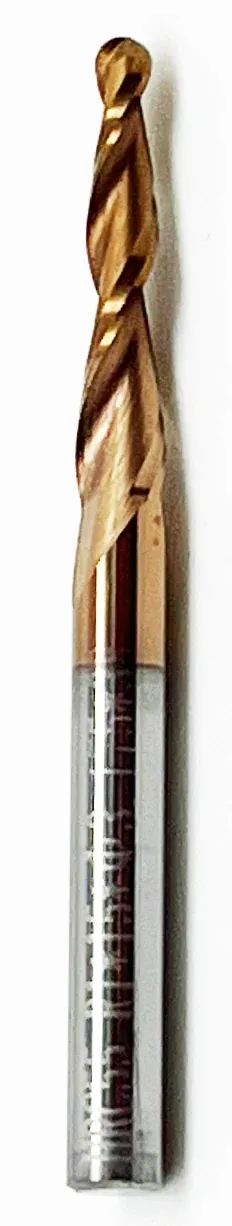

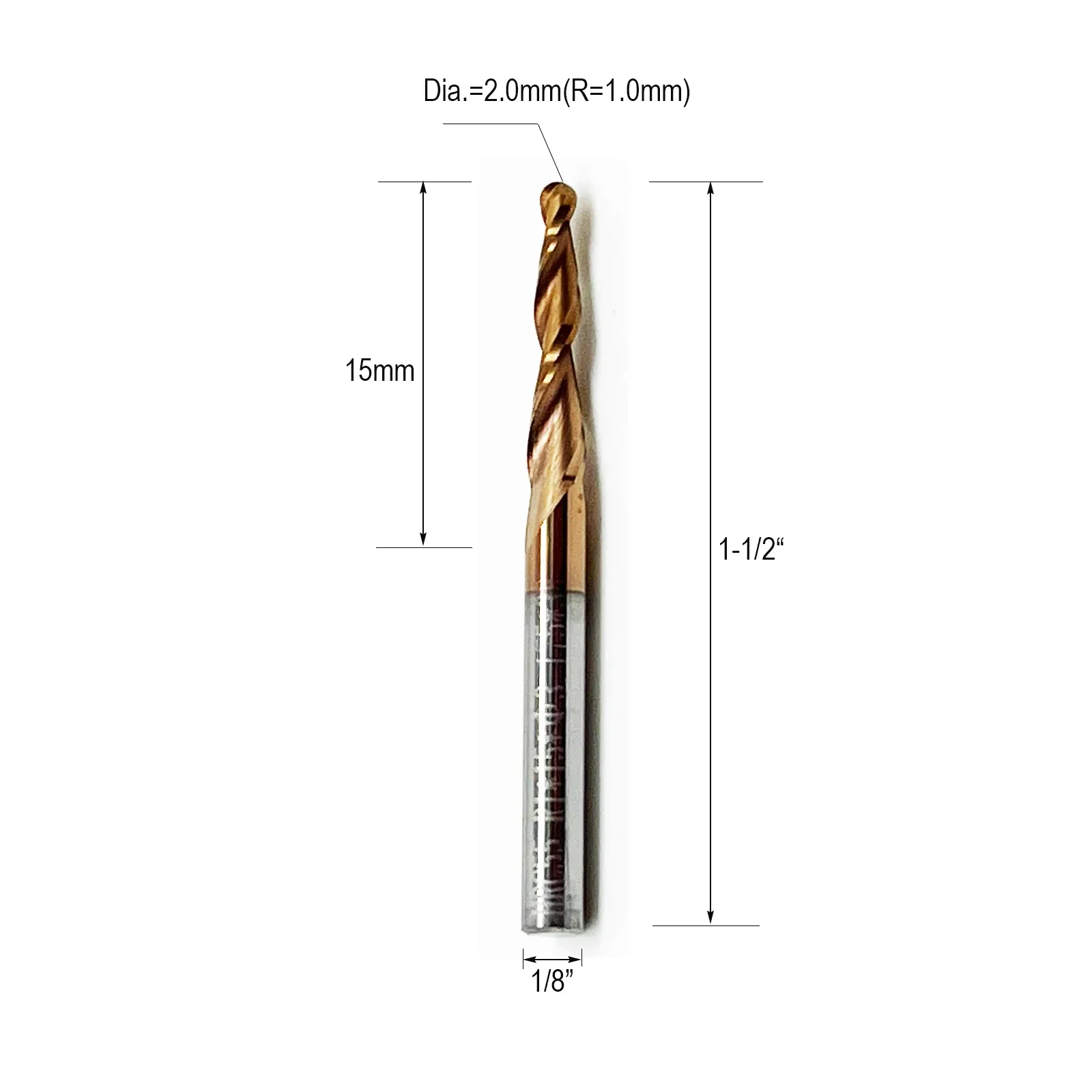

HW-TB-I-005
Tapered Ball Nose End Mill
R1 mm · Shank 3.175 mm · FL 15 mm · OAL 38 mm
2 flutes · HRC55 · TiSiN
Q5 $33.99

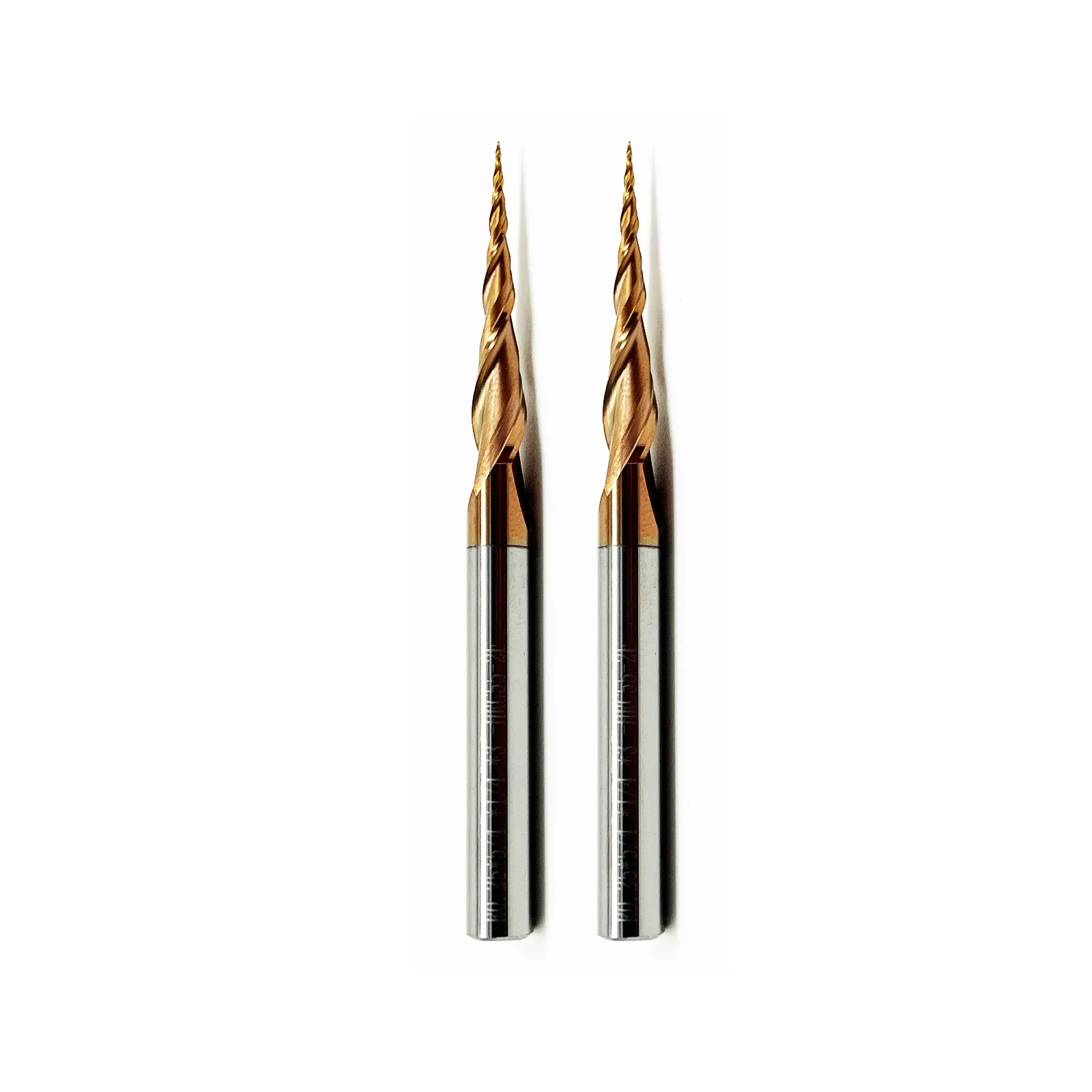

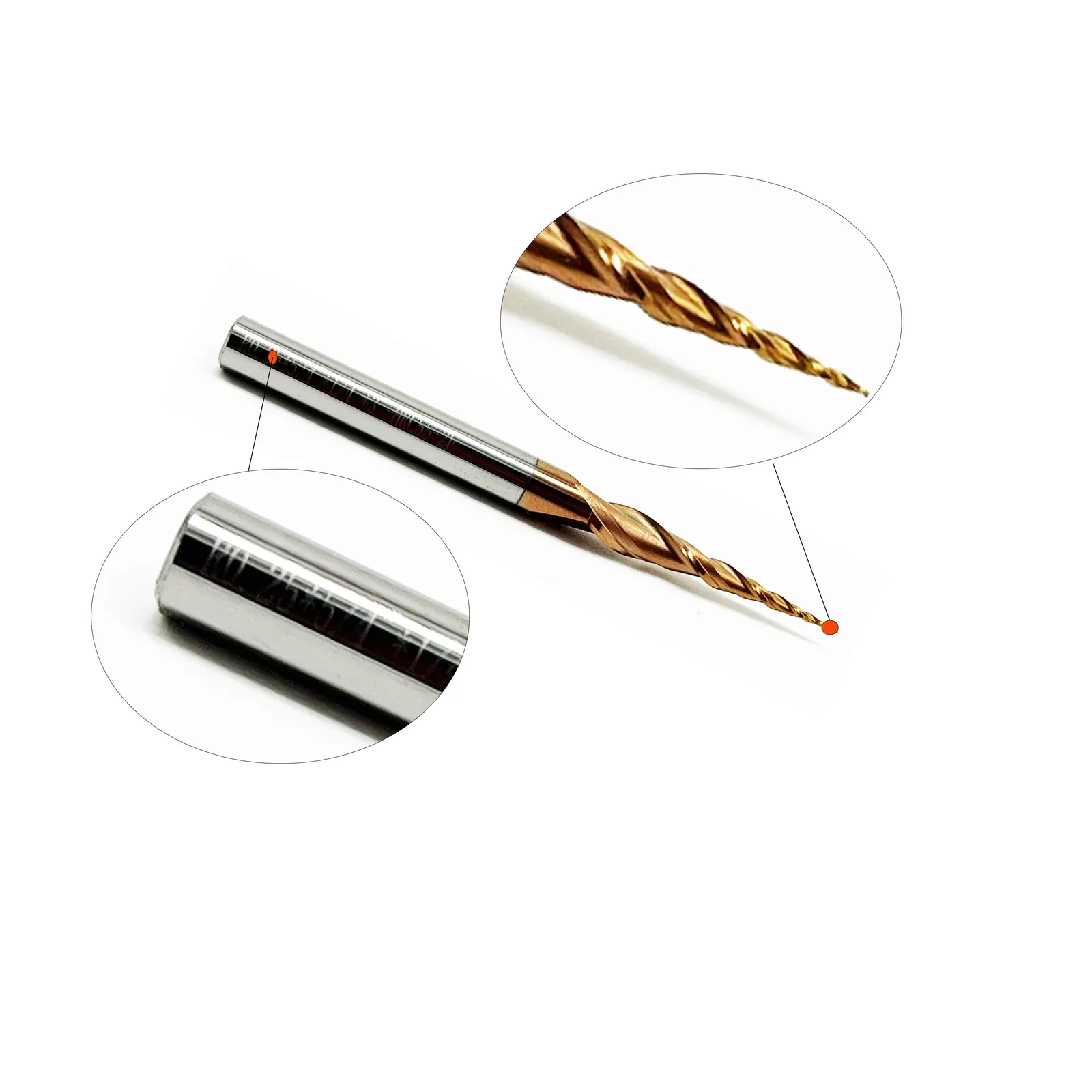

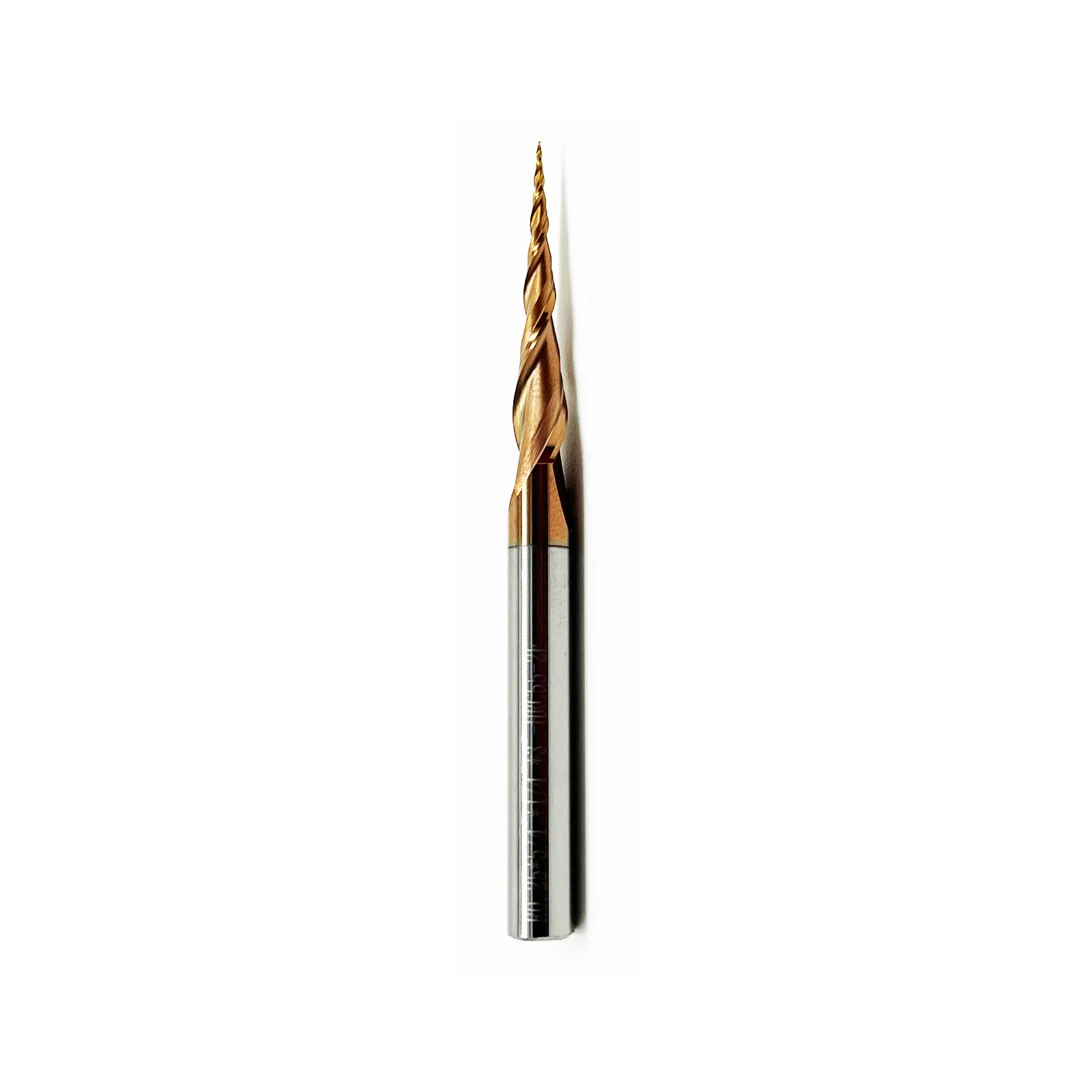

HW-TB-I-006
Tapered Ball Nose End Mill

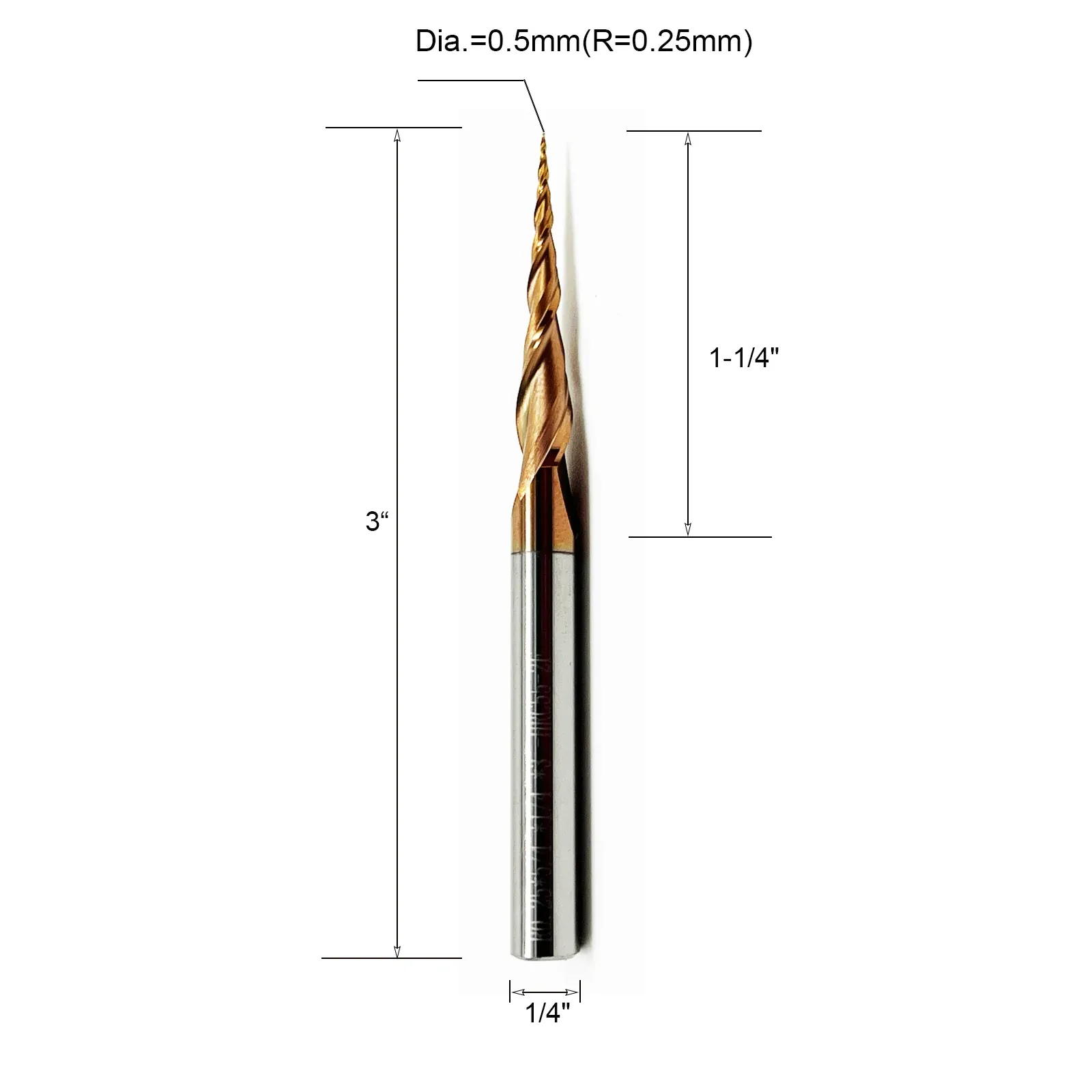

R0.25 mm · Shank 6.35 mm · FL 31.75 mm · OAL 76.2 mm
2 flutes · HRC55 · TiSiN
Q1 $23.49 · Q2 $40.99

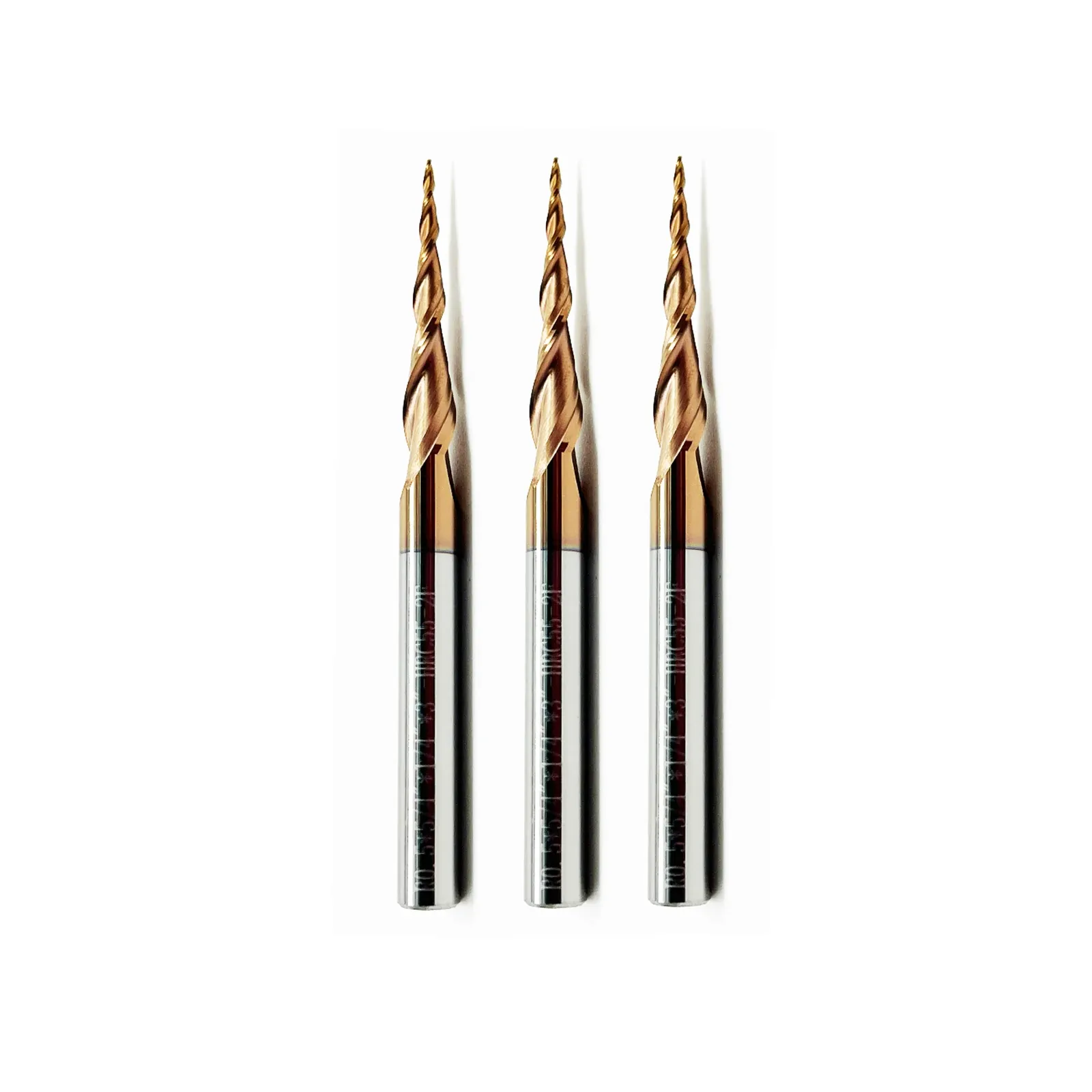

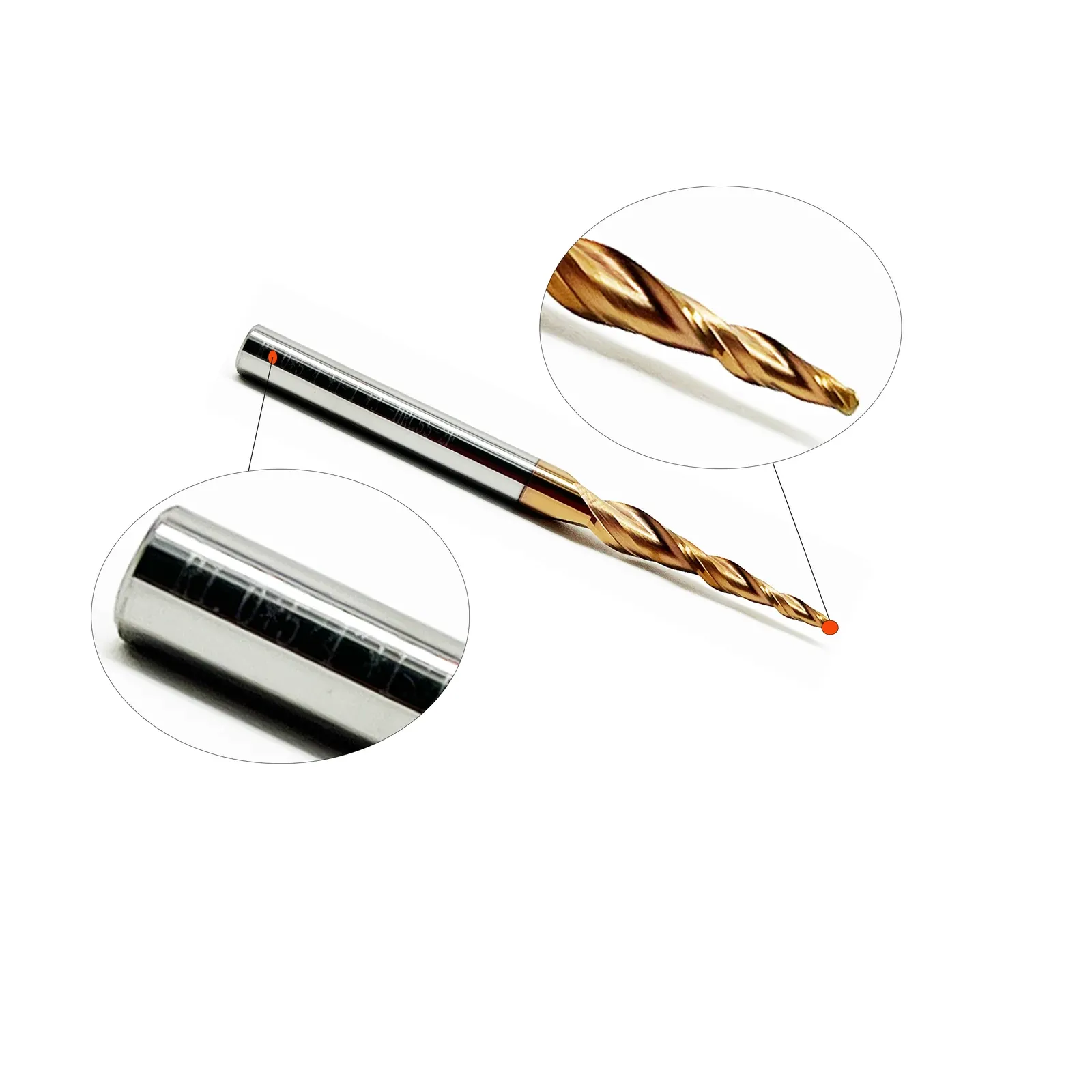

HW-TB-I-007
Tapered Ball Nose End Mill
R0.5 mm · Shank 6.35 mm · FL 31.75 mm · OAL 76.2 mm
2 flutes · HRC55 · TiSiN
Q1 $23.49 · Q2 $40.99

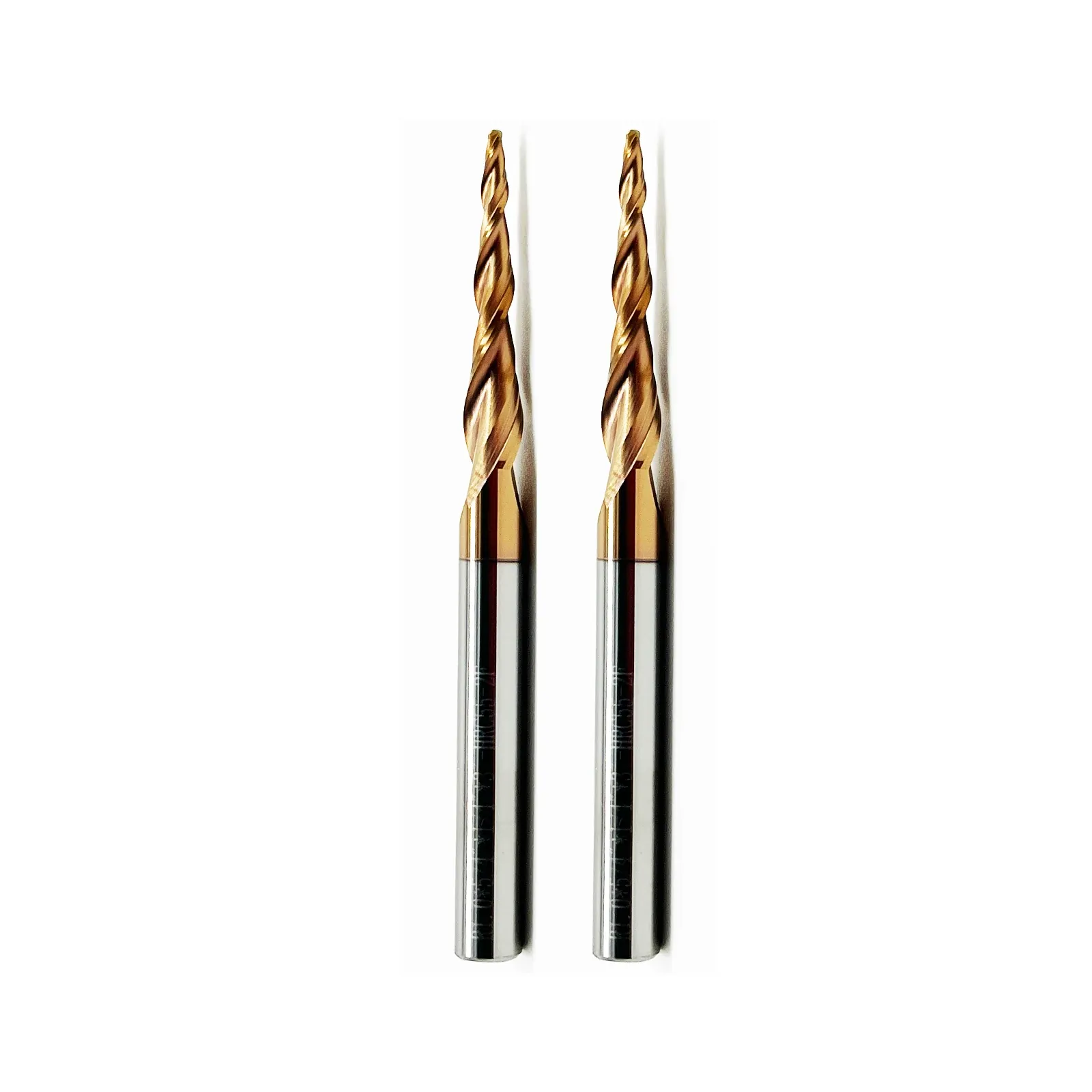

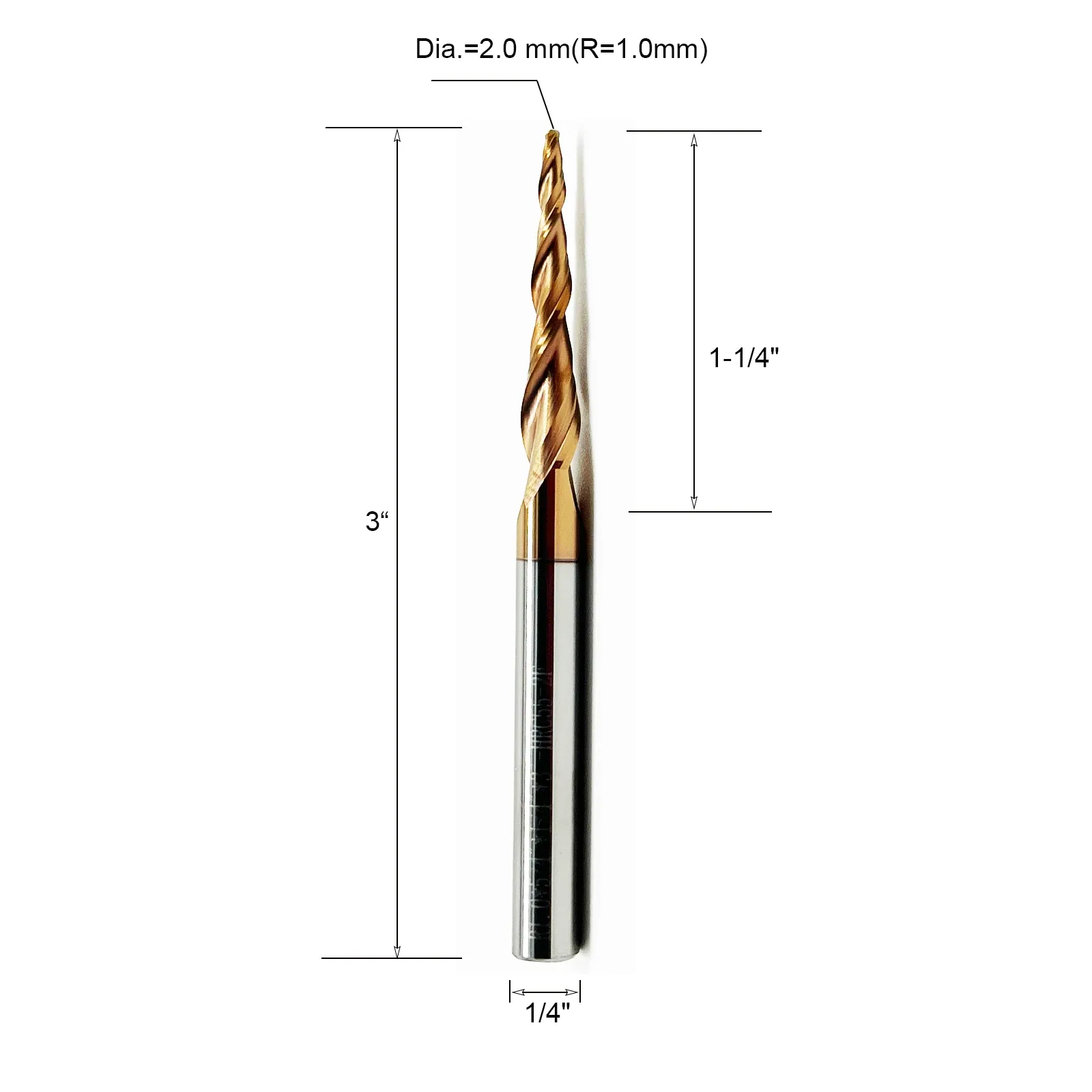

HW-TB-I-008
Tapered Ball Nose End Mill
R1 mm · Shank 6.35 mm · FL 31.75 mm · OAL 76.2 mm
2 flutes · HRC55 · TiSiN
Q1 $23.49 · Q2 $40.99

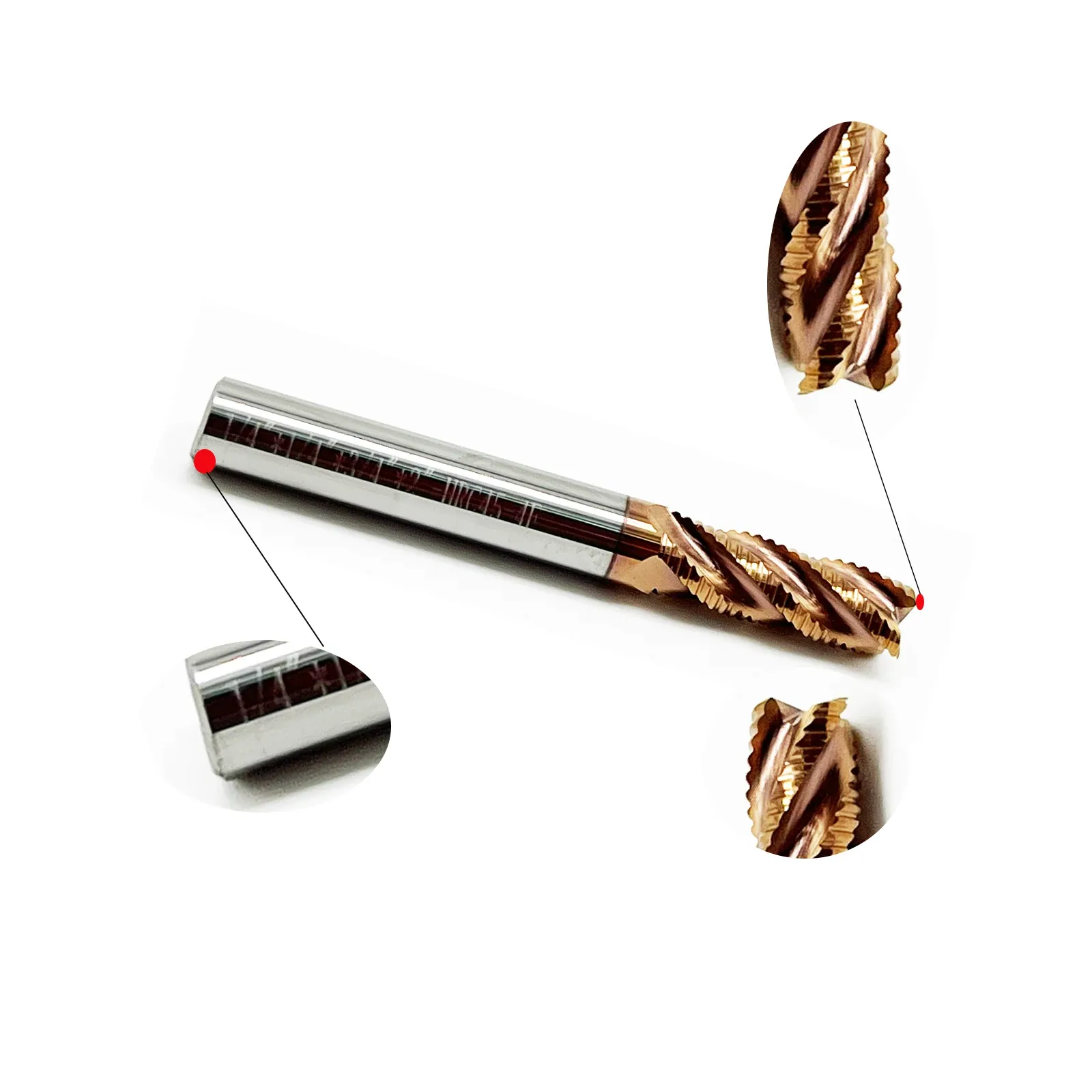

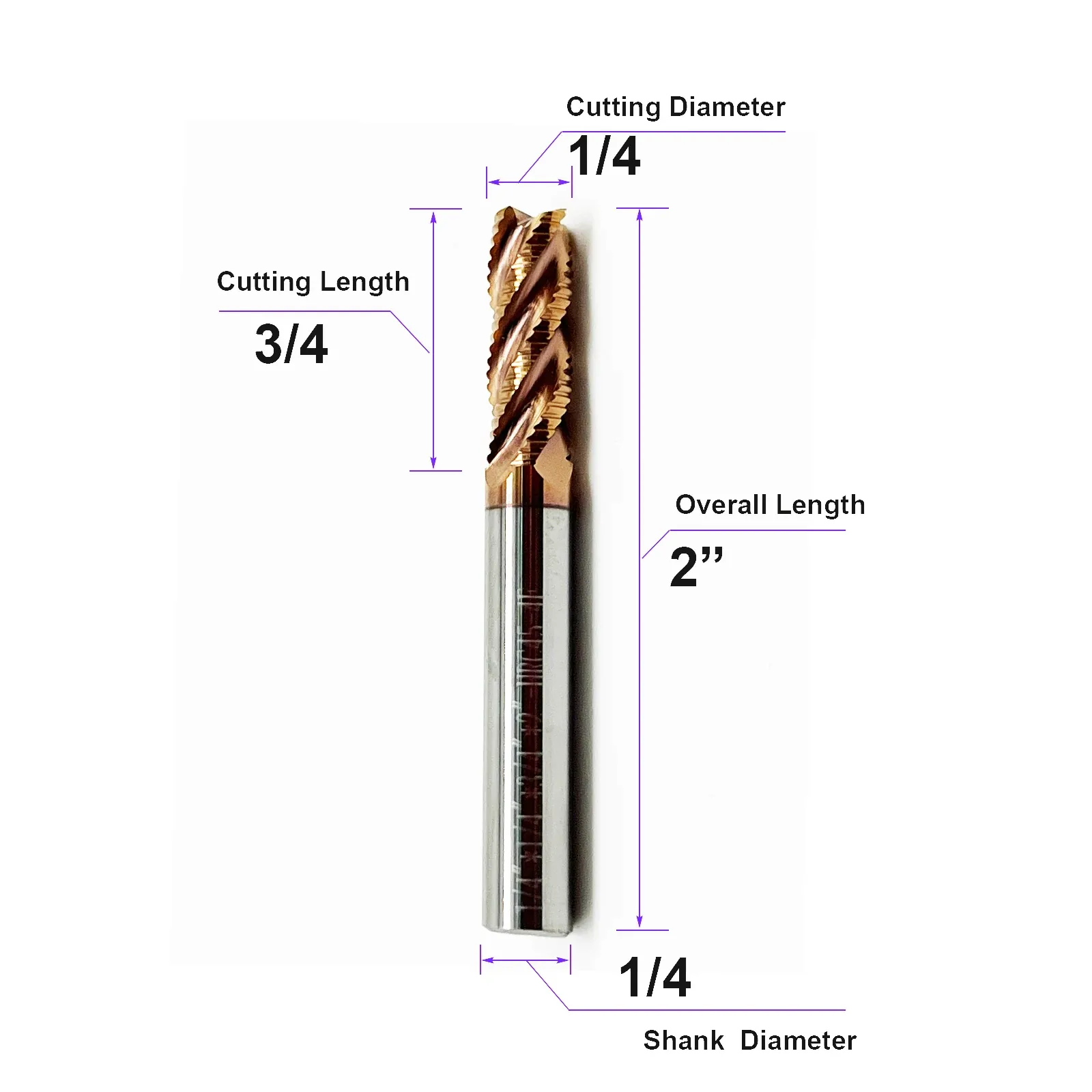

HW-RF-I-001
Roughing End Mill
D6.35 mm · Shank 6.35 mm · FL 19.05 mm · OAL 50.8 mm
4 flutes · HRC45 · TiSiN
Q1 $19.99 · Q2 $34.99

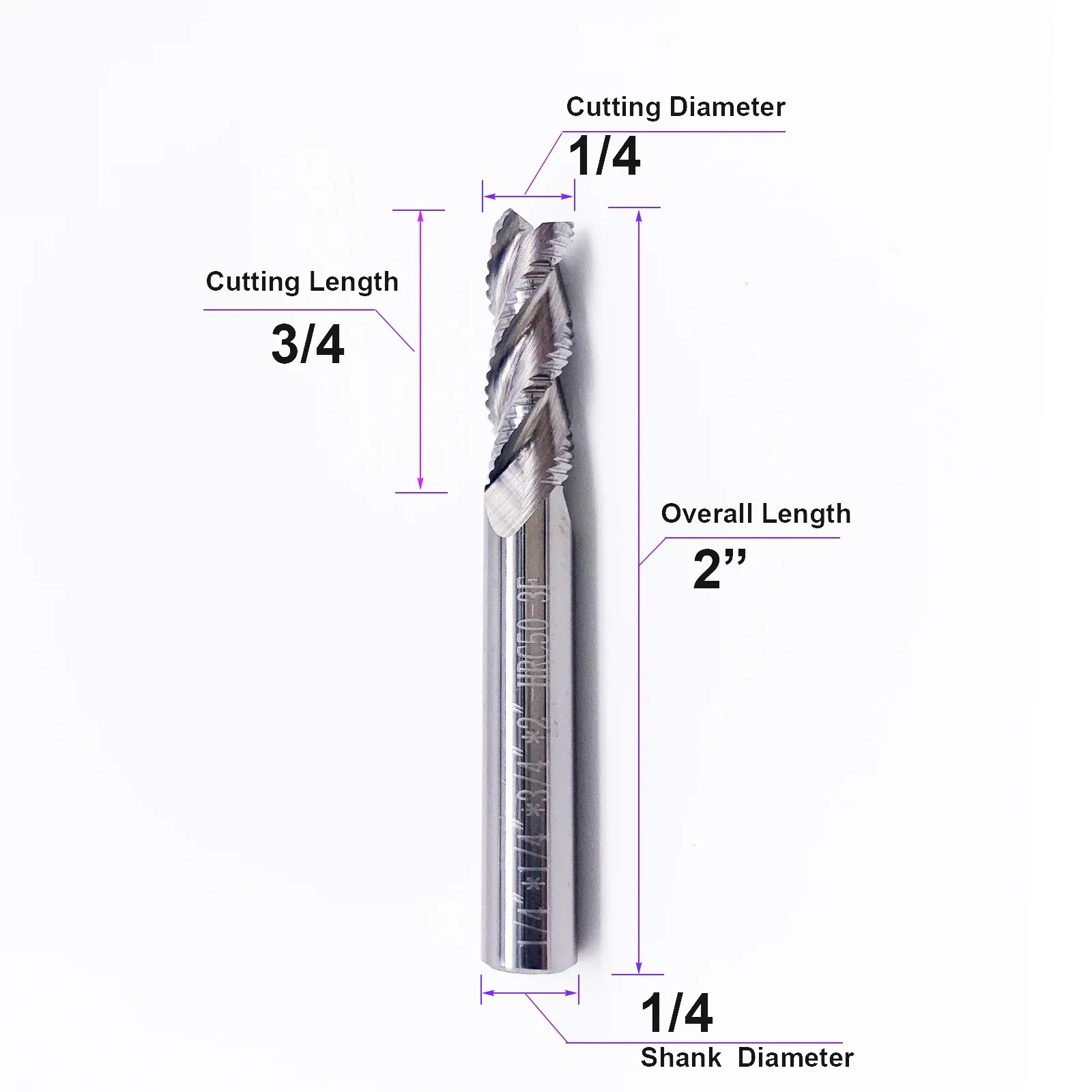

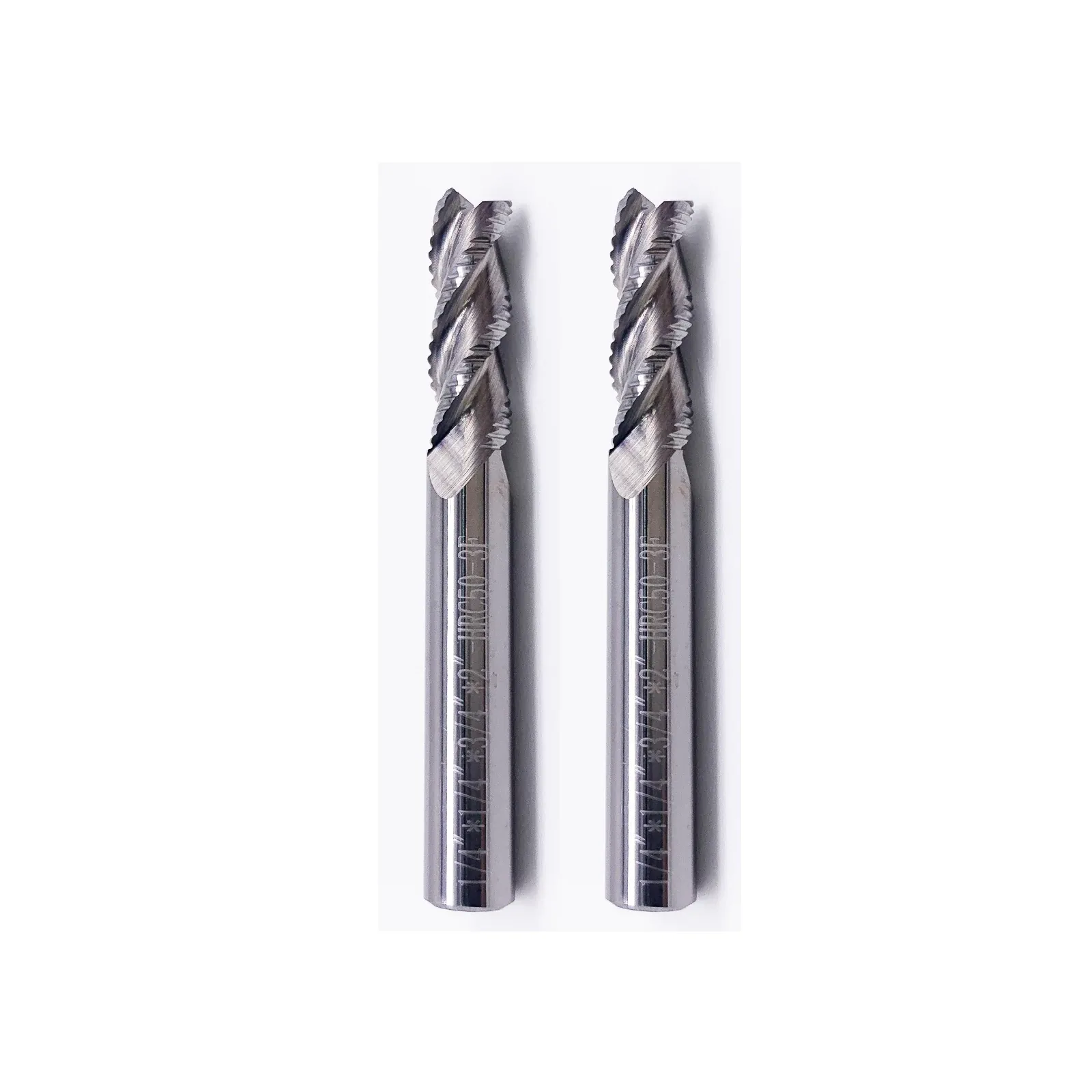

HW-RF-I-002
Roughing End Mill
D6.35 mm · Shank 6.35 mm · FL 19.05 mm · OAL 50.8 mm
3 flutes · HRC50 · TiSiN
Q1 $22.99 · Q2 $34.99

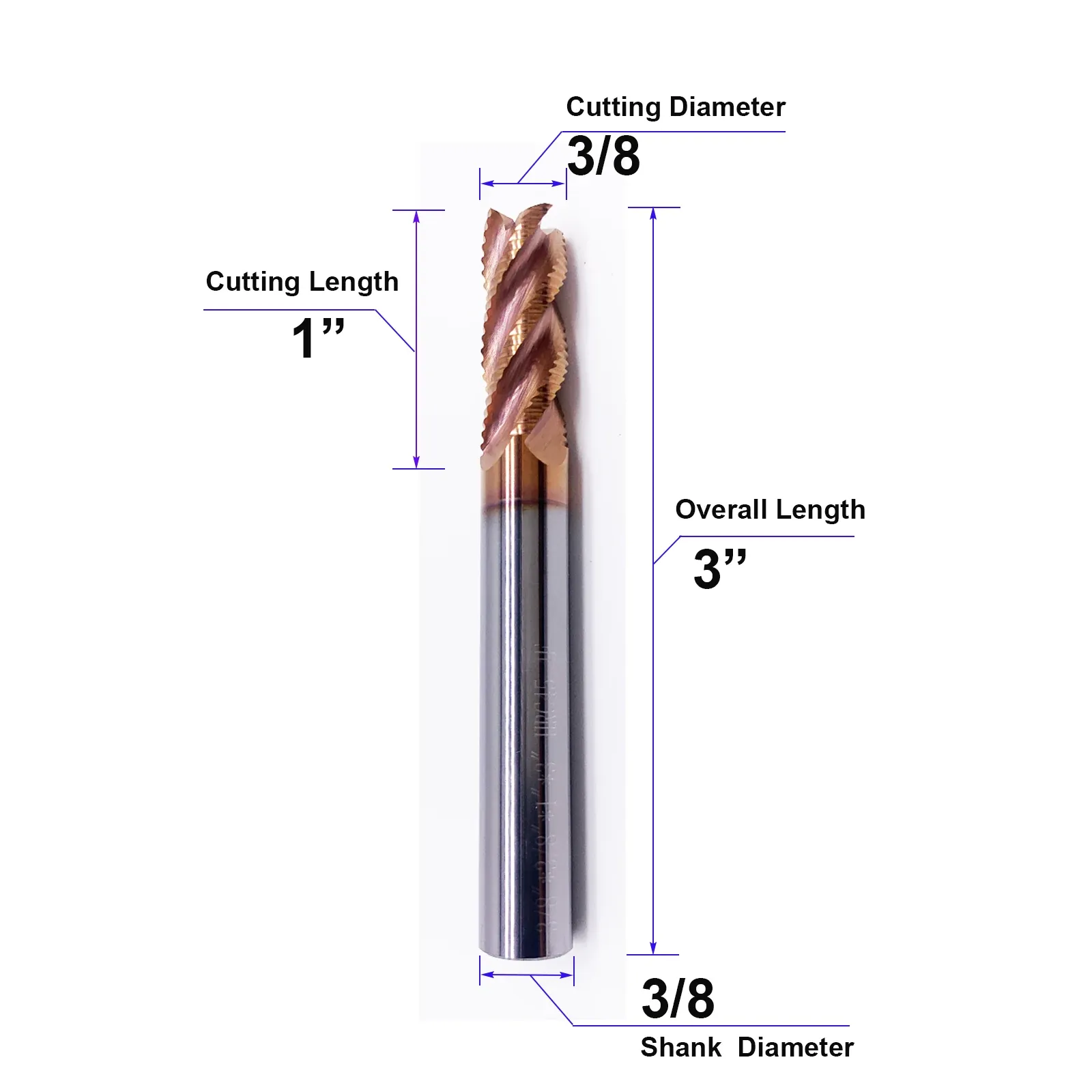

HW-RF-I-003
Roughing End Mill
D9.525 mm · Shank 9.525 mm · FL 25.4 mm · OAL 76.2 mm
4 flutes · HRC45 · TiSiN
Q1 $35.99

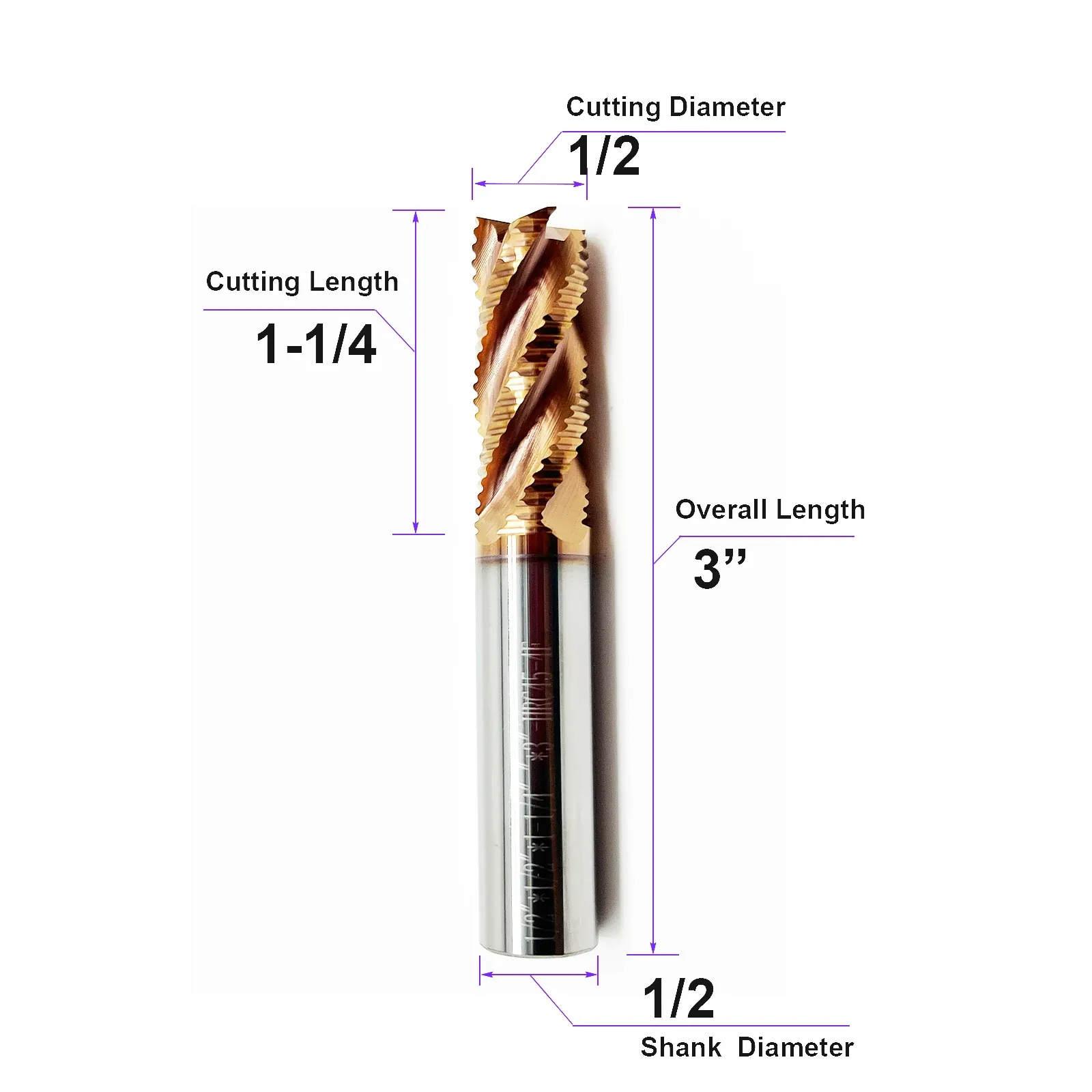

HW-RF-I-004
Roughing End Mill
D12.7 mm · Shank 12.7 mm · FL 31.75 mm · OAL 76.2 mm
4 flutes · HRC45 · TiSiN
Q1 $45.99

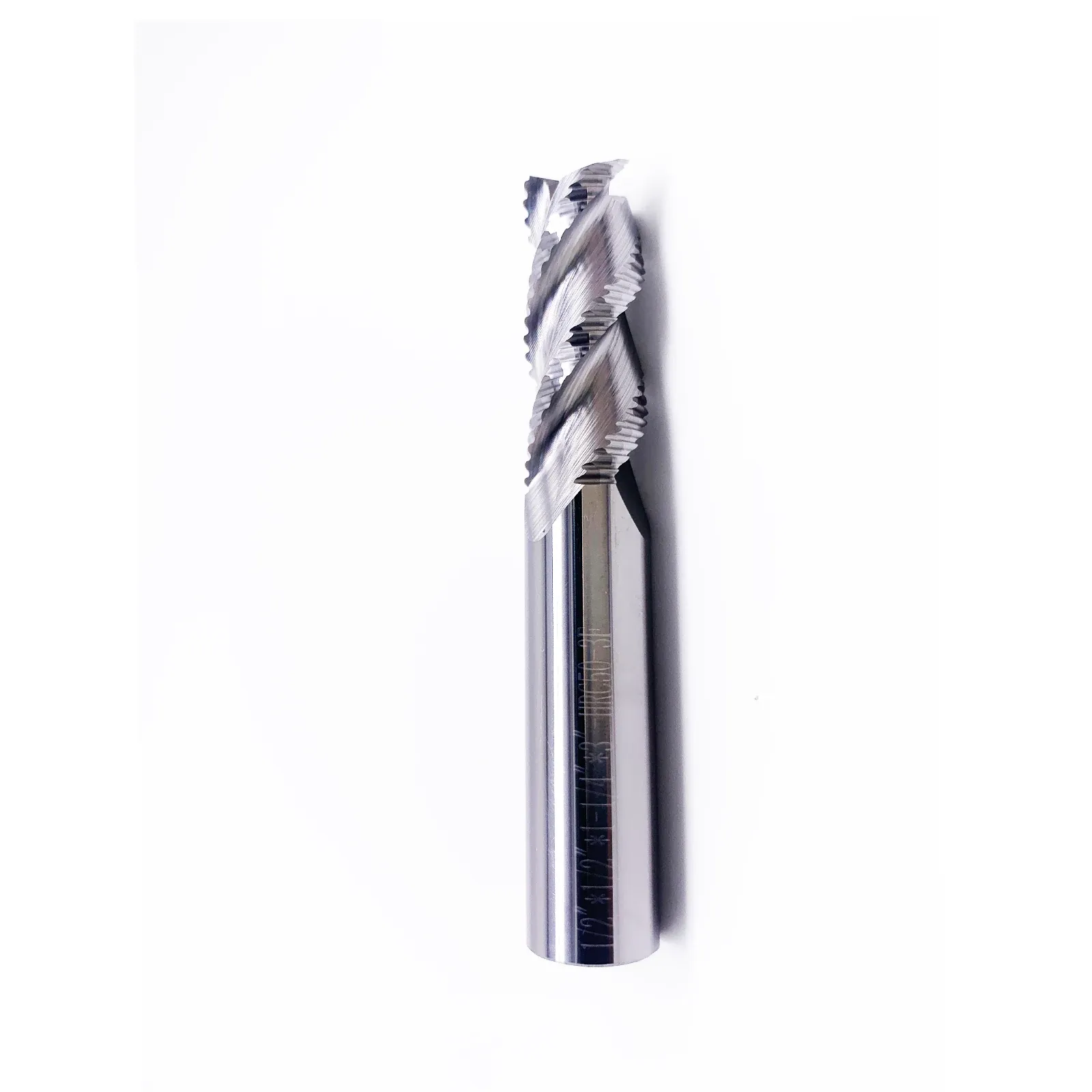

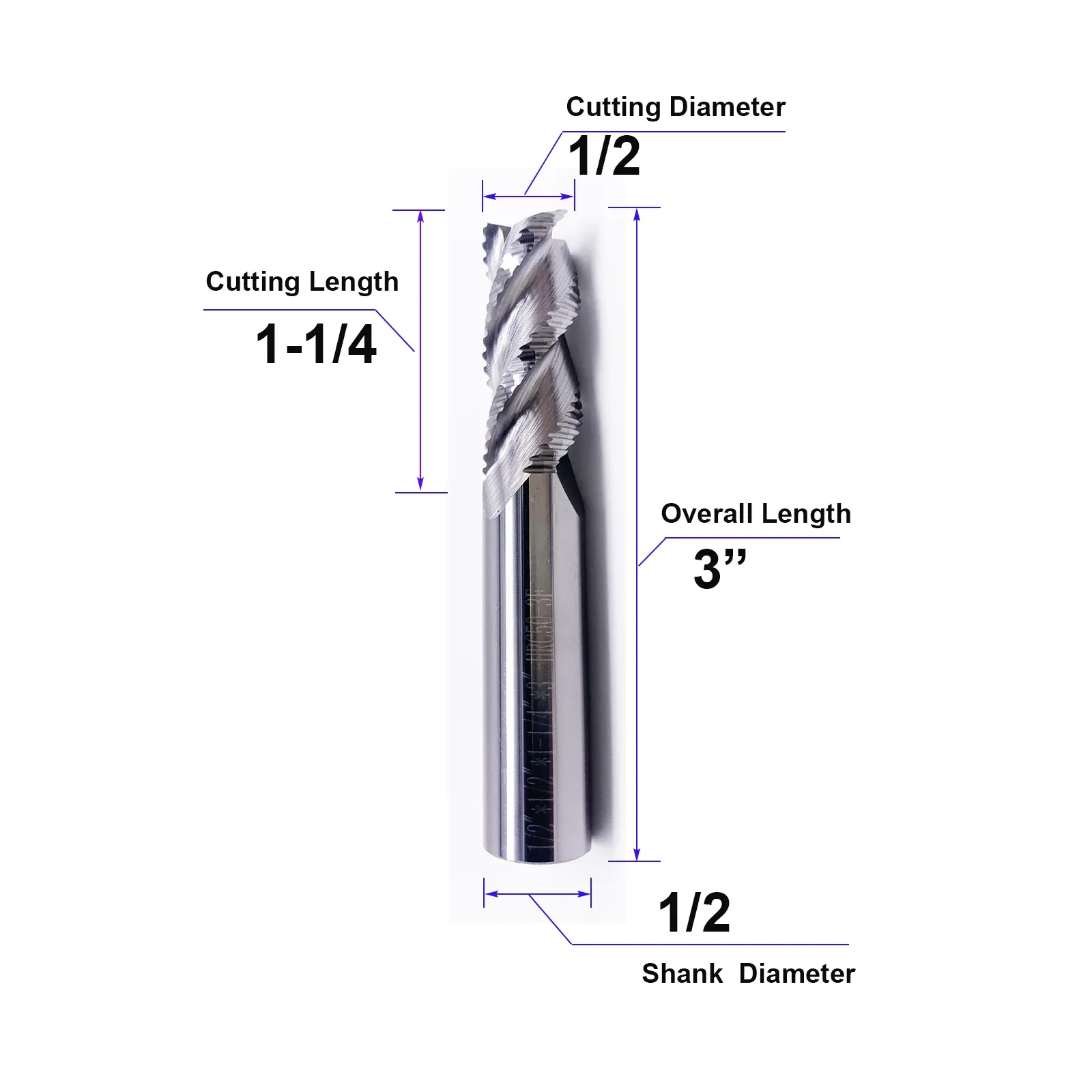

HW-RF-I-005
Roughing End Mill
D12.7 mm · Shank 12.7 mm · FL 31.75 mm · OAL 76.2 mm
3 flutes · HRC50 · TiSiN
Q1 $45.99
HW-RF-I-006
Roughing End Mill
D9.525 mm · Shank 9.525 mm · FL 25.4 mm · OAL 76.2 mm
3 flutes · HRC50 · TiSiN
Q1 $35.99

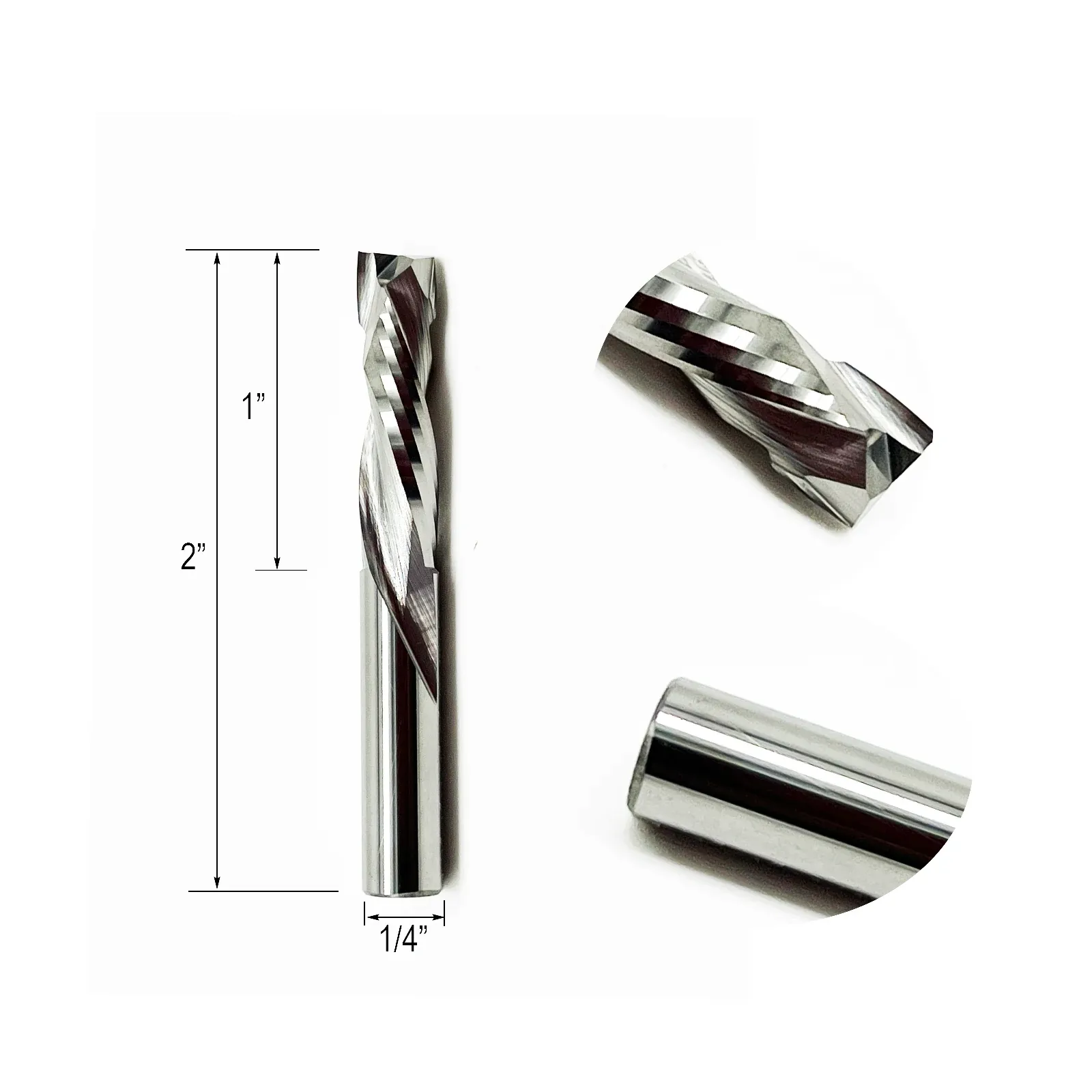

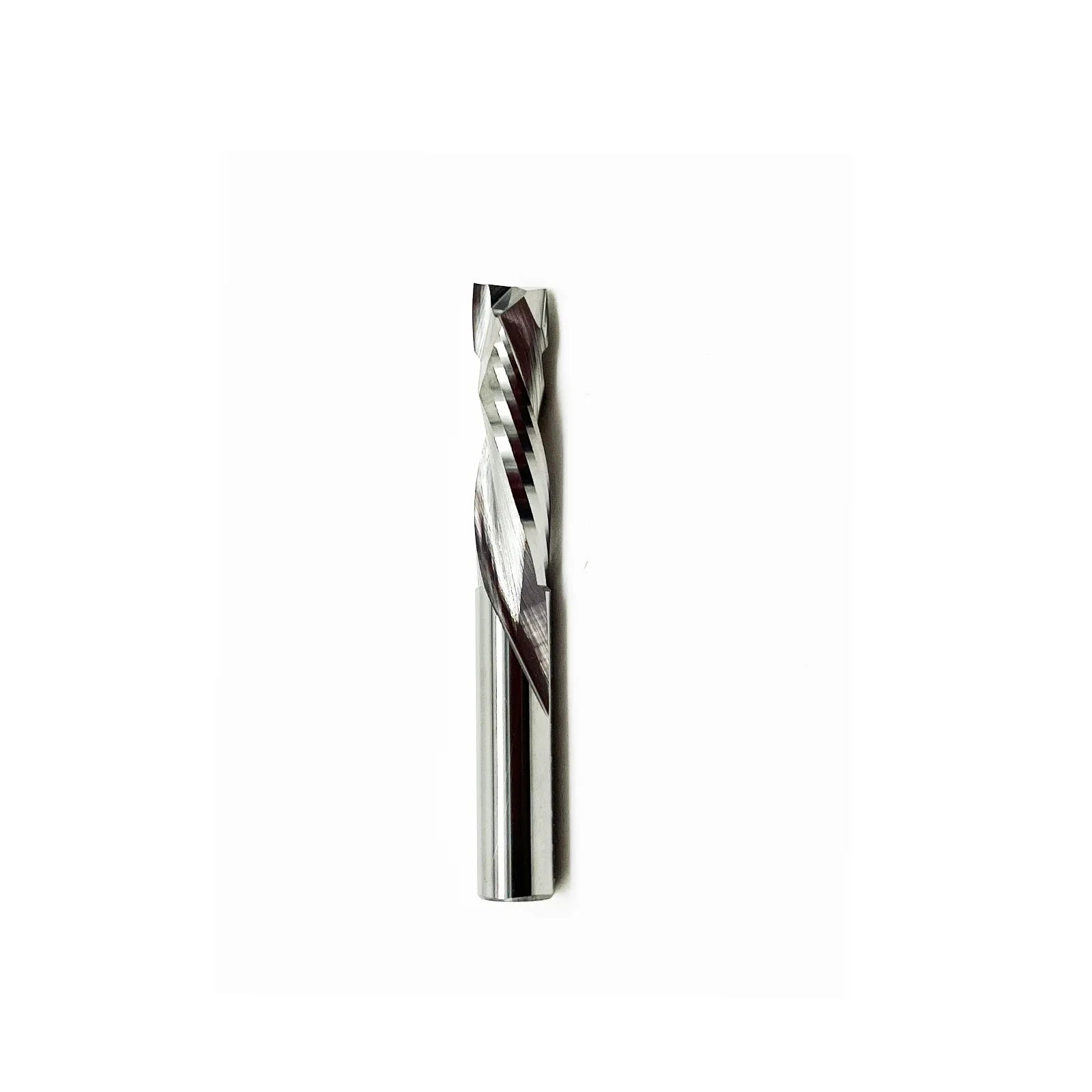

HW-DC-I-001
Downcut End Mill
D6.35 mm · Shank 6.35 mm · FL 25.4 mm · OAL 50.8 mm
2 flutes · HRC55 · TiSiN
Q1 $20.99
Metric Carbide End Mills 30 specifications
HW-TB-M-001
Tapered Ball Nose End Mill
R0.1 mm · Shank 4 mm · FL 15 mm · OAL 50 mm
2 flutes · HRC55 · TiSiN
Price pending

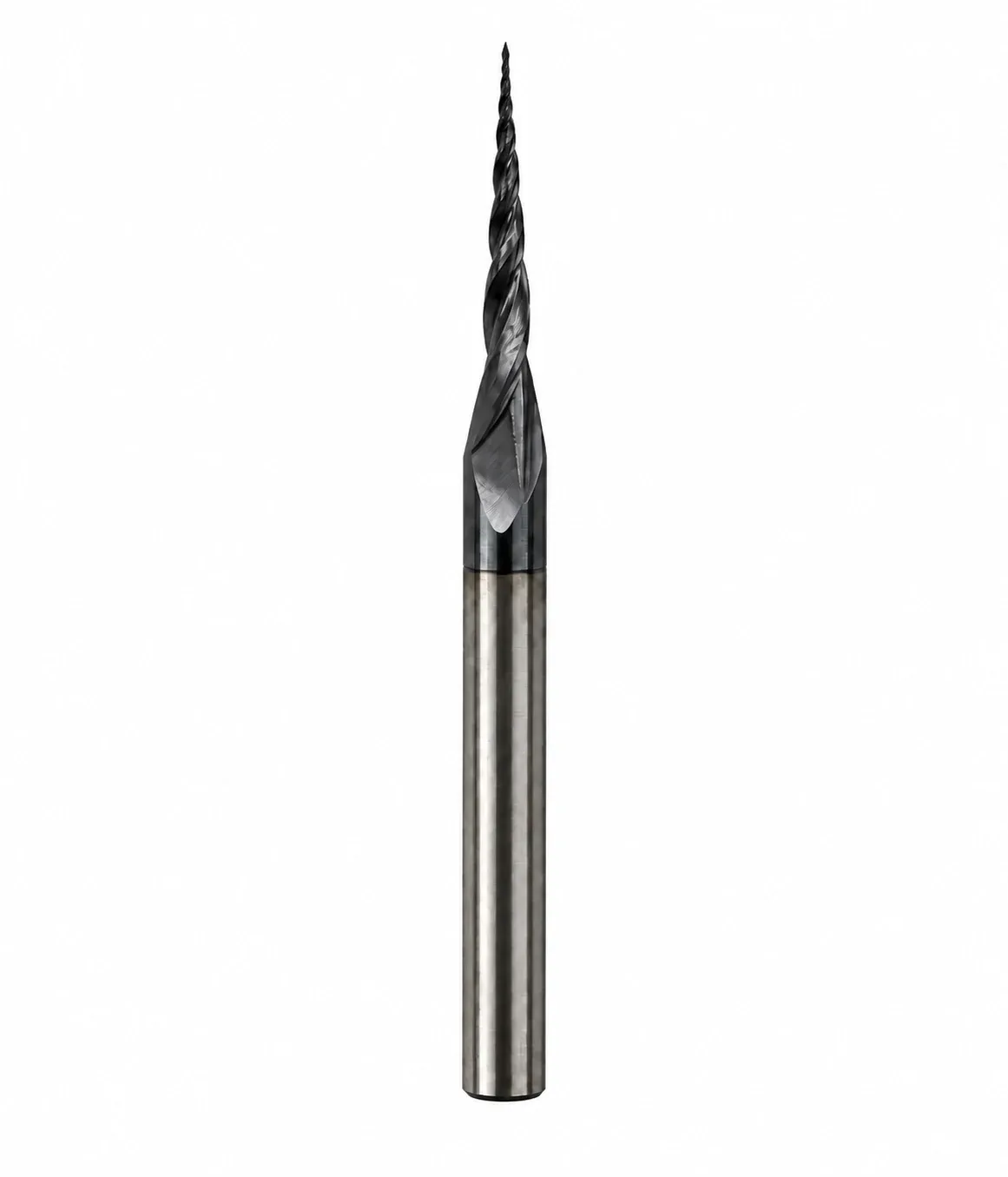

HW-TB-M-002
Tapered Ball Nose End Mill
R0.1 mm · Shank 4 mm · FL 20.5 mm · OAL 50 mm
2 flutes · HRC55 · TiSiN
Price pending

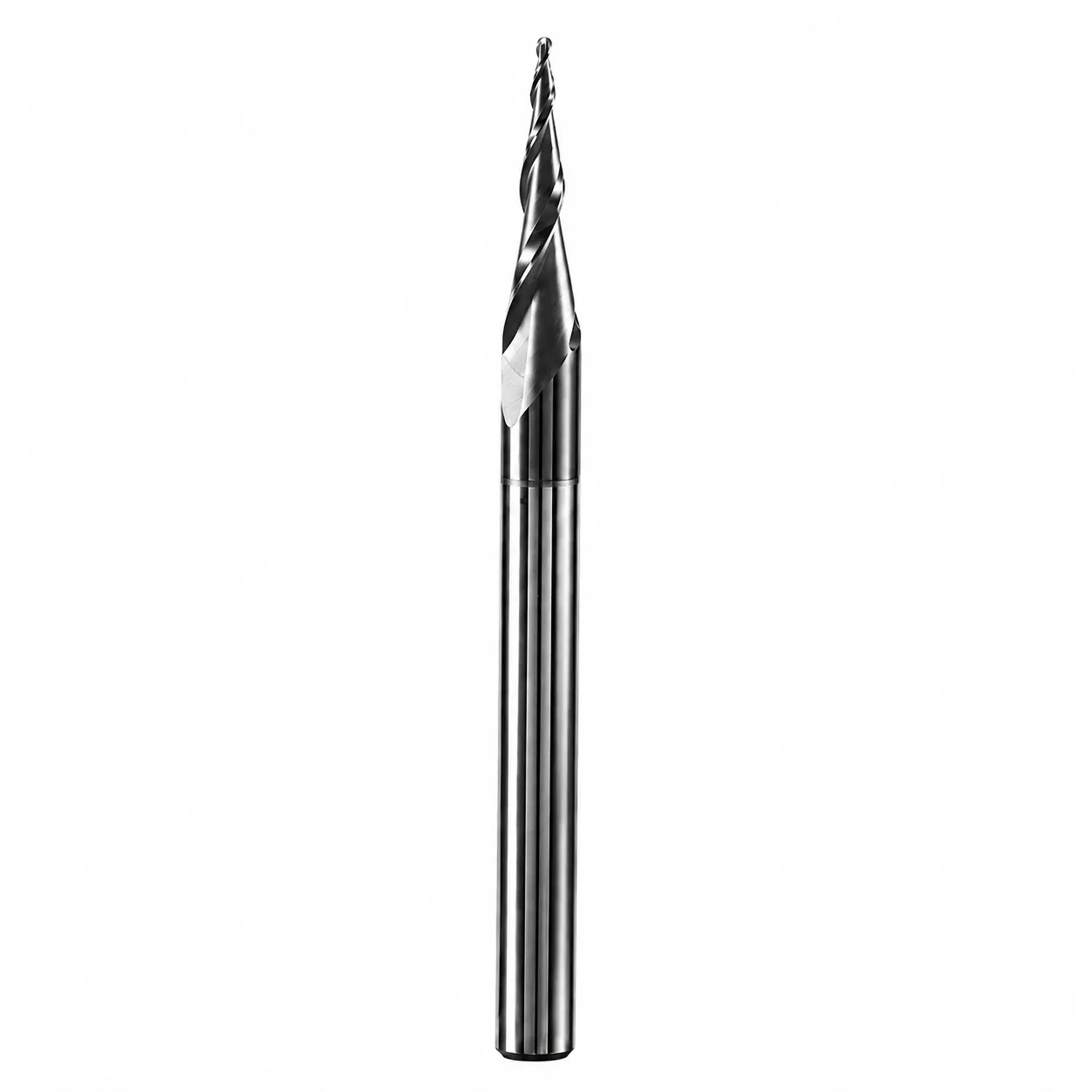

HW-TB-M-003
Tapered Ball Nose End Mill
R0.25 mm · Shank 4 mm · FL 15 mm · OAL 50 mm
2 flutes · HRC55 · TiSiN
Price pending

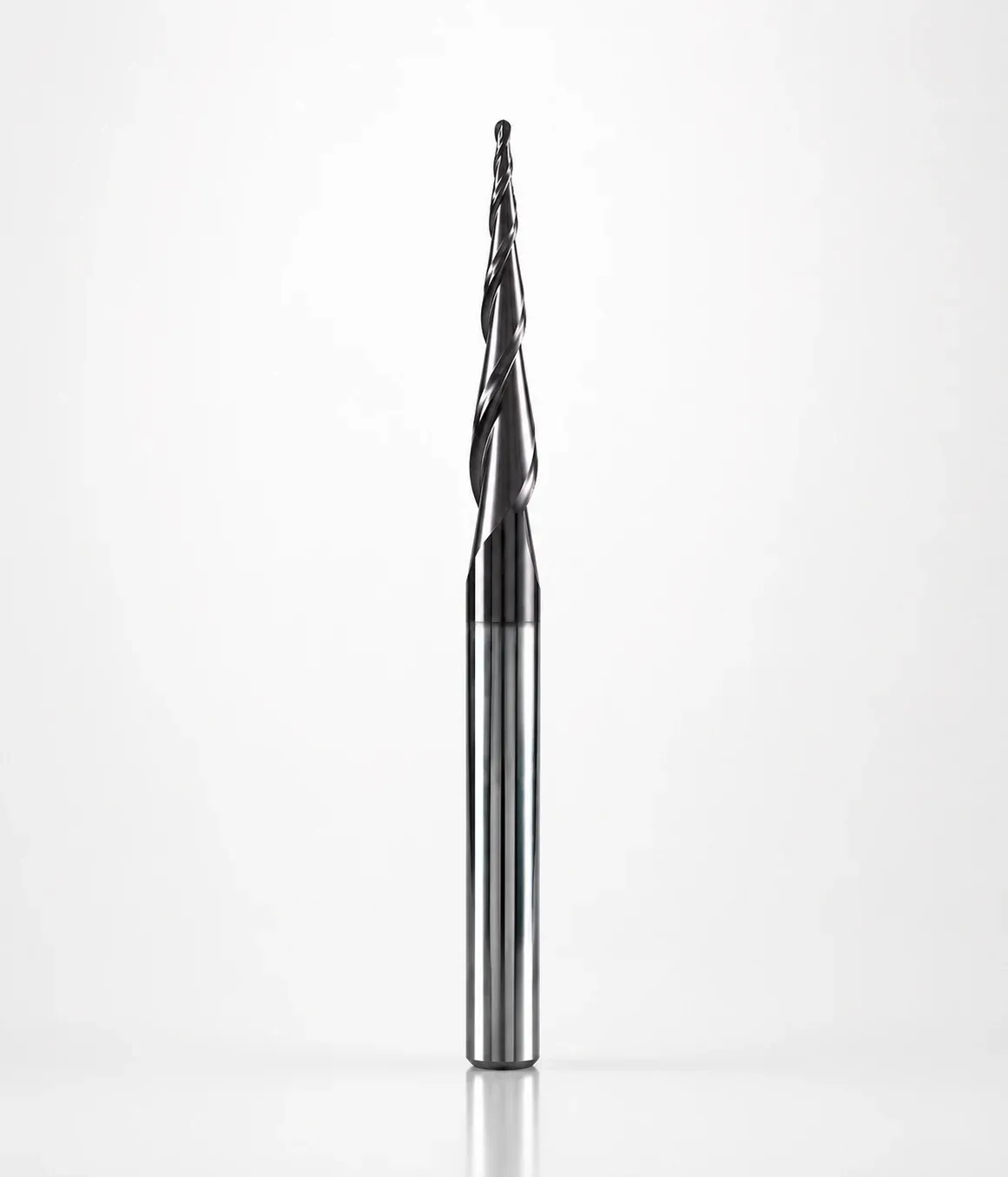

HW-TB-M-004
Tapered Ball Nose End Mill
R0.25 mm · Shank 4 mm · FL 20.5 mm · OAL 50 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-005
Tapered Ball Nose End Mill
R0.5 mm · Shank 4 mm · FL 15 mm · OAL 50 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-006
Tapered Ball Nose End Mill
R0.5 mm · Shank 4 mm · FL 20.5 mm · OAL 50 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-007
Tapered Ball Nose End Mill
R0.75 mm · Shank 4 mm · FL 15 mm · OAL 50 mm
2 flutes · HRC55 · TiSiN
Price pending

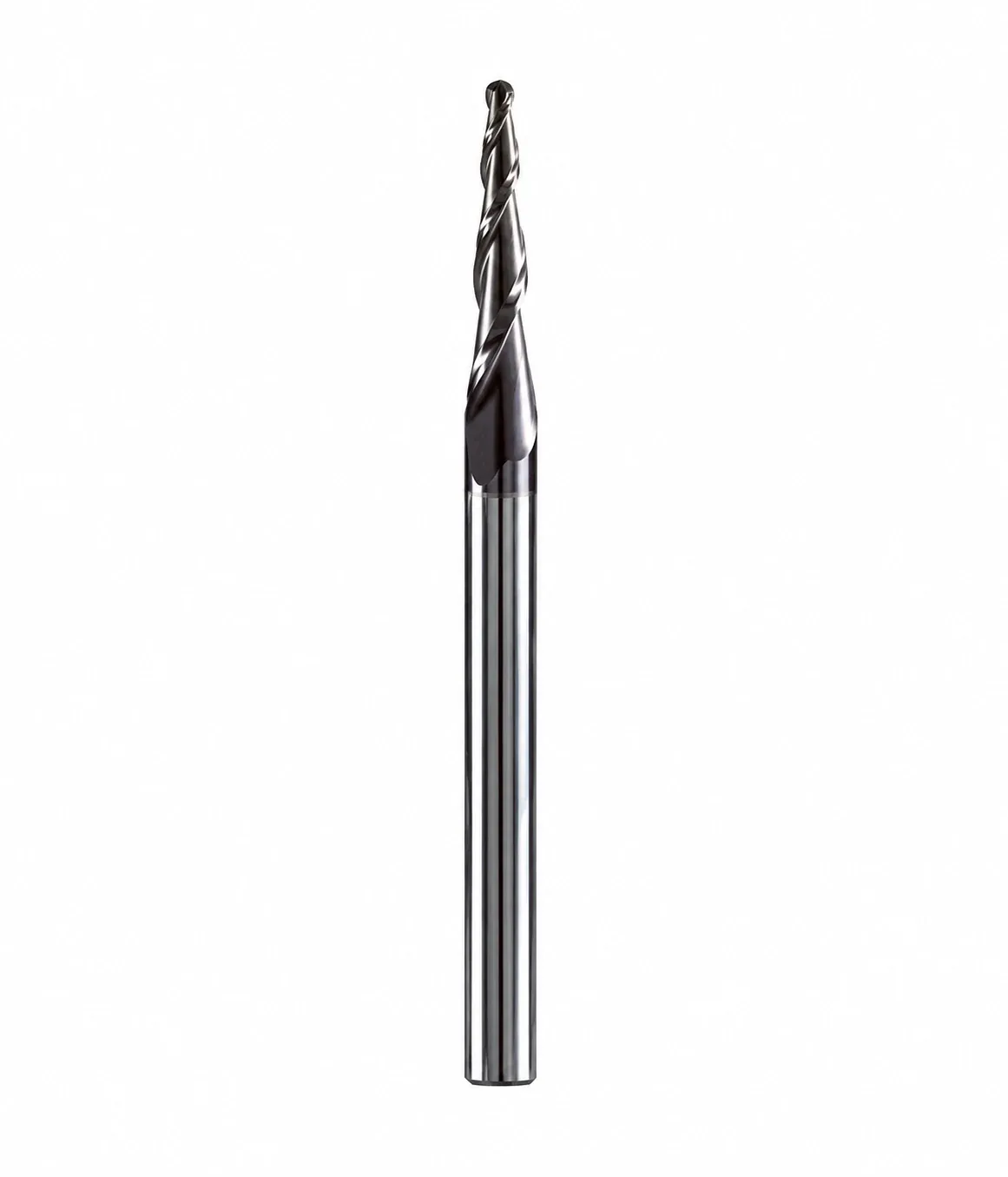

HW-TB-M-008
Tapered Ball Nose End Mill
R0.75 mm · Shank 4 mm · FL 20.5 mm · OAL 50 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-009
Tapered Ball Nose End Mill
R1 mm · Shank 4 mm · FL 15 mm · OAL 50 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-010
Tapered Ball Nose End Mill
R1 mm · Shank 4 mm · FL 20.5 mm · OAL 50 mm
2 flutes · HRC55 · TiSiN
Price pending

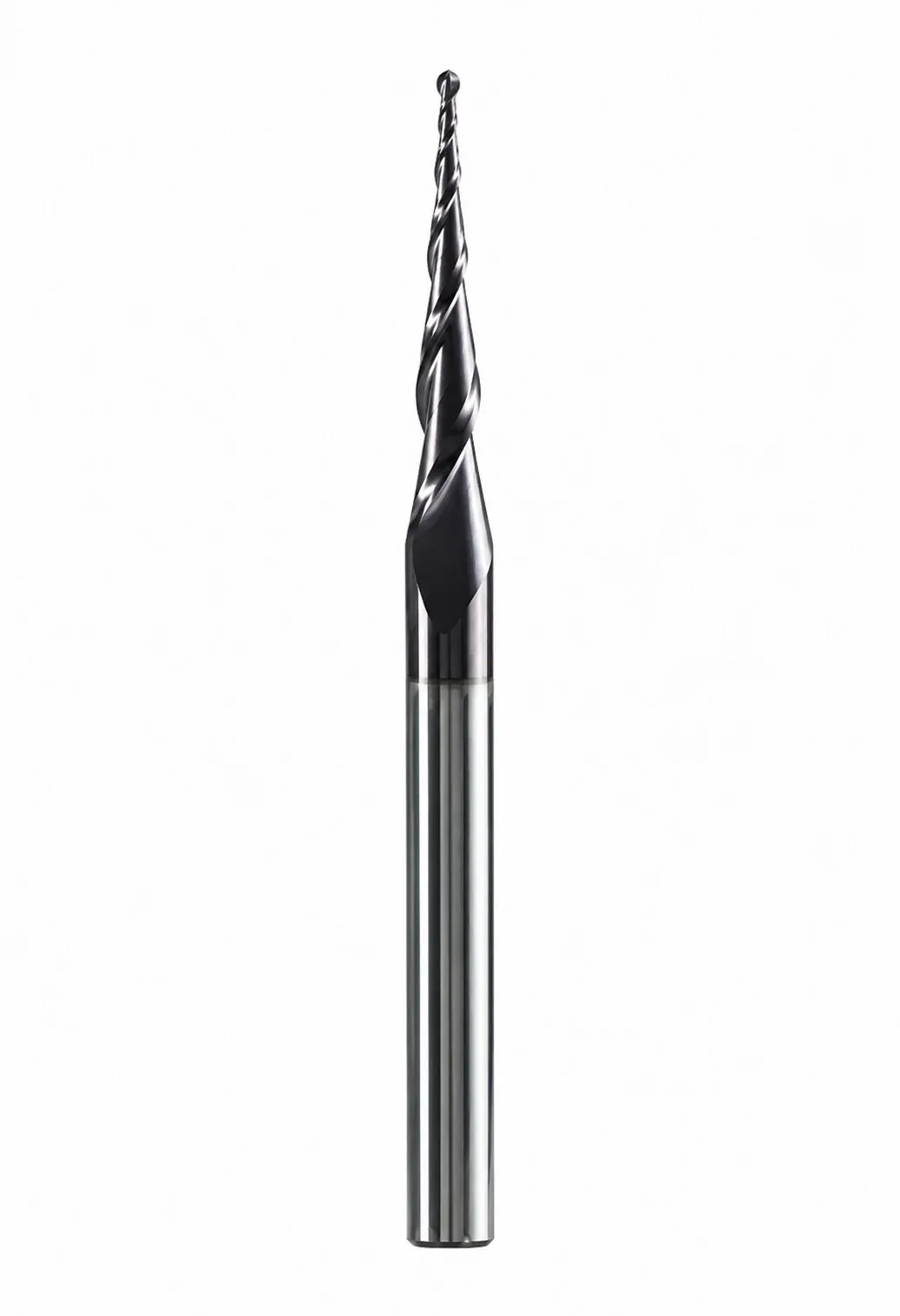

HW-TB-M-011
Tapered Ball Nose End Mill
R0.25 mm · Shank 6 mm · FL 30.5 mm · OAL 75 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-012
Tapered Ball Nose End Mill
R0.5 mm · Shank 6 mm · FL 30.5 mm · OAL 75 mm
2 flutes · HRC55 · TiSiN
Price pending

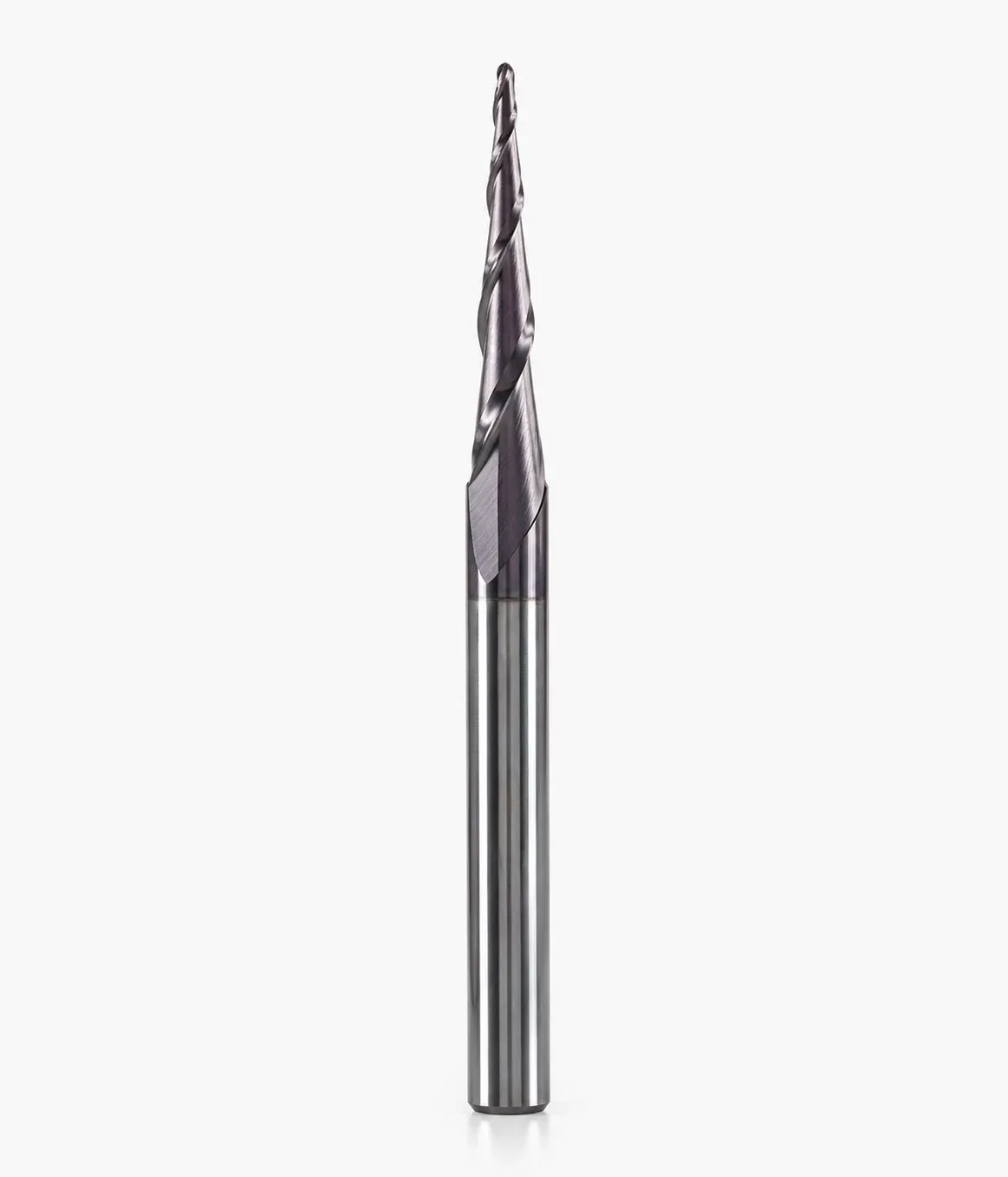

HW-TB-M-013
Tapered Ball Nose End Mill
R0.75 mm · Shank 6 mm · FL 30.5 mm · OAL 75 mm
2 flutes · HRC55 · TiSiN
Price pending

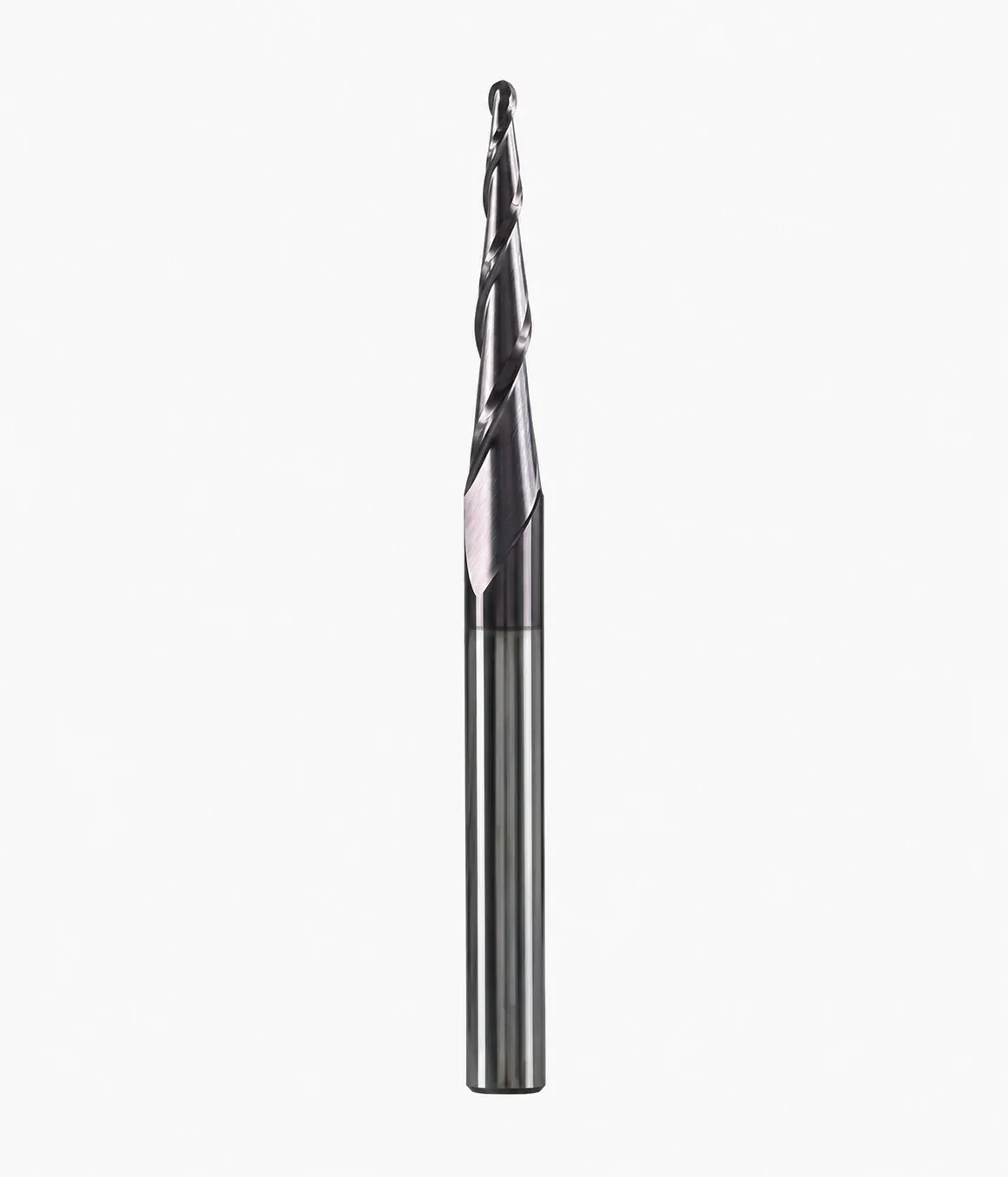

HW-TB-M-014
Tapered Ball Nose End Mill
R1 mm · Shank 6 mm · FL 30.5 mm · OAL 75 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-015
Tapered Ball Nose End Mill
R1.5 mm · Shank 6 mm · FL 30.5 mm · OAL 75 mm
2 flutes · HRC55 · TiSiN
Price pending

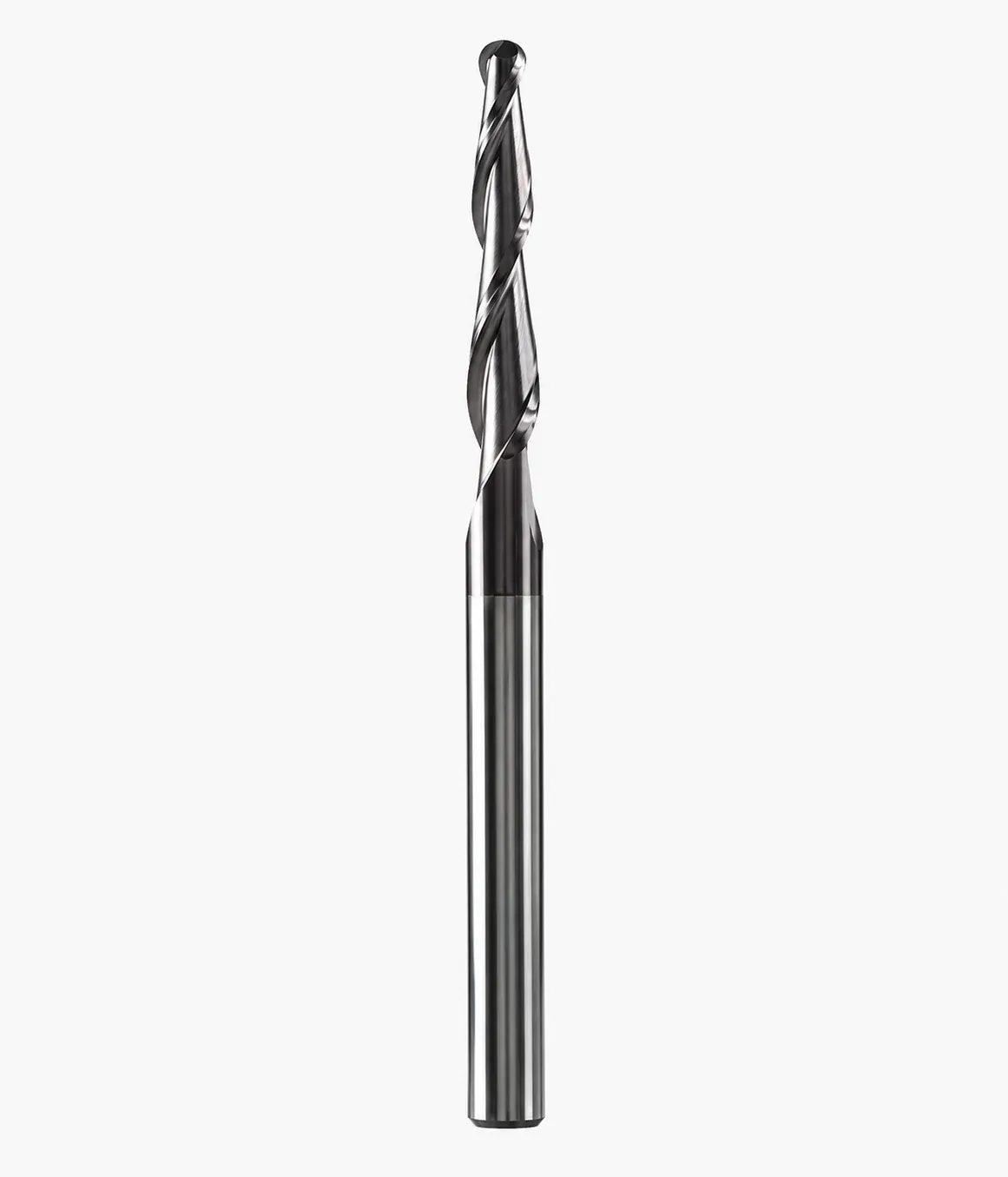

HW-TB-M-016
Tapered Ball Nose End Mill
R2 mm · Shank 6 mm · FL 30.5 mm · OAL 75 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-017
Tapered Ball Nose End Mill
R0.5 mm · Shank 8 mm · FL 45 mm · OAL 85 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-018
Tapered Ball Nose End Mill
R0.5 mm · Shank 8 mm · FL 60 mm · OAL 100 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-019
Tapered Ball Nose End Mill
R0.75 mm · Shank 8 mm · FL 60 mm · OAL 100 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-020
Tapered Ball Nose End Mill
R1 mm · Shank 8 mm · FL 45 mm · OAL 85 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-021
Tapered Ball Nose End Mill
R1 mm · Shank 8 mm · FL 60 mm · OAL 100 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-022
Tapered Ball Nose End Mill
R1.5 mm · Shank 8 mm · FL 45 mm · OAL 85 mm
2 flutes · HRC55 · TiSiN
Price pending

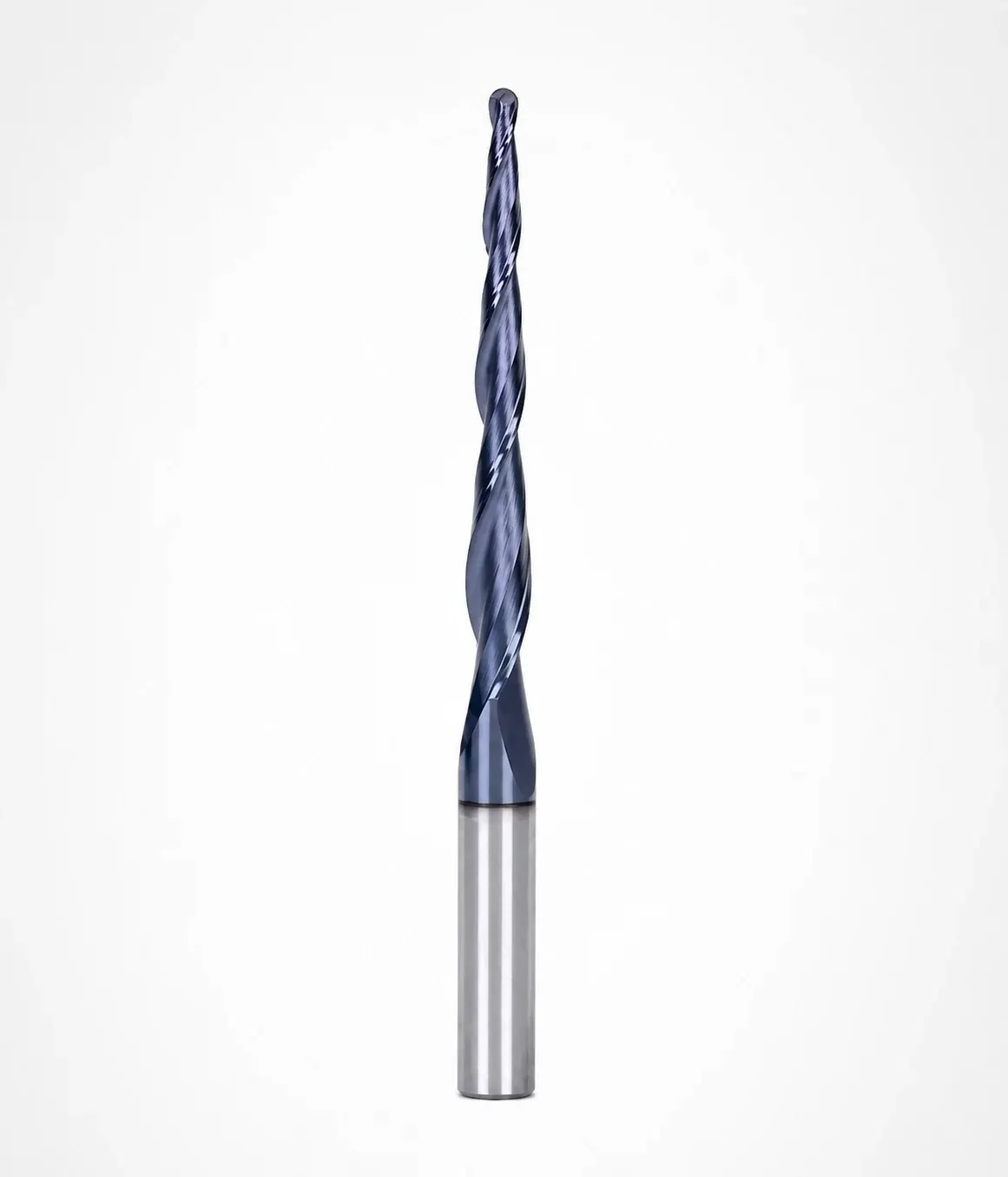

HW-TB-M-023
Tapered Ball Nose End Mill
R1.5 mm · Shank 8 mm · FL 60 mm · OAL 100 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-024
Tapered Ball Nose End Mill
R2 mm · Shank 8 mm · FL 45 mm · OAL 85 mm
2 flutes · HRC55 · TiSiN
Price pending
HW-TB-M-025
Tapered Ball Nose End Mill
R2 mm · Shank 8 mm · FL 60 mm · OAL 100 mm
2 flutes · HRC55 · TiSiN
Price pending

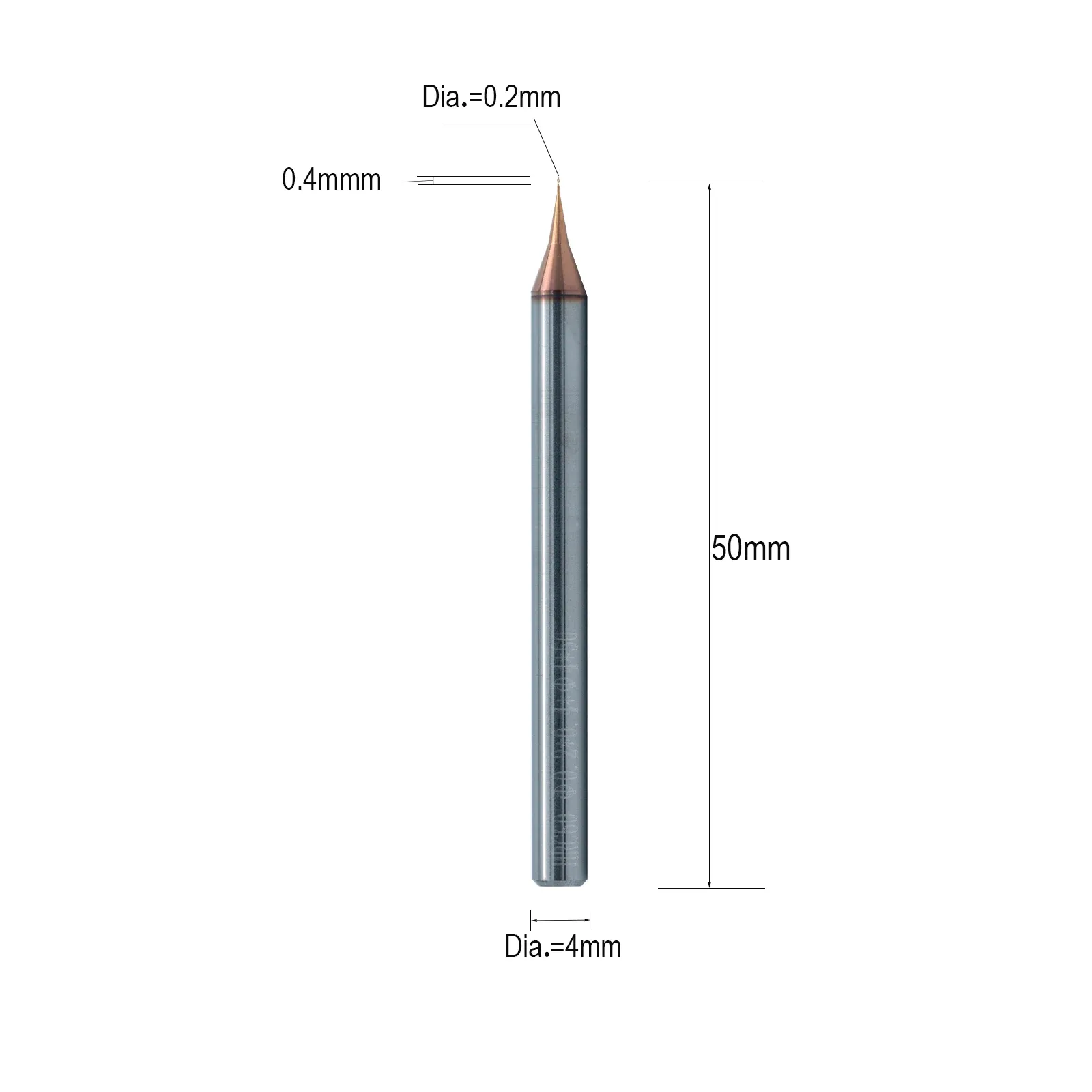

HW-MF-M-001
Micro Flat End Mill
D0.2 mm · Shank 4 mm · FL 0.4 mm · OAL 50 mm
2 flutes · HRC60 · TiSiN
Q3 $29.98

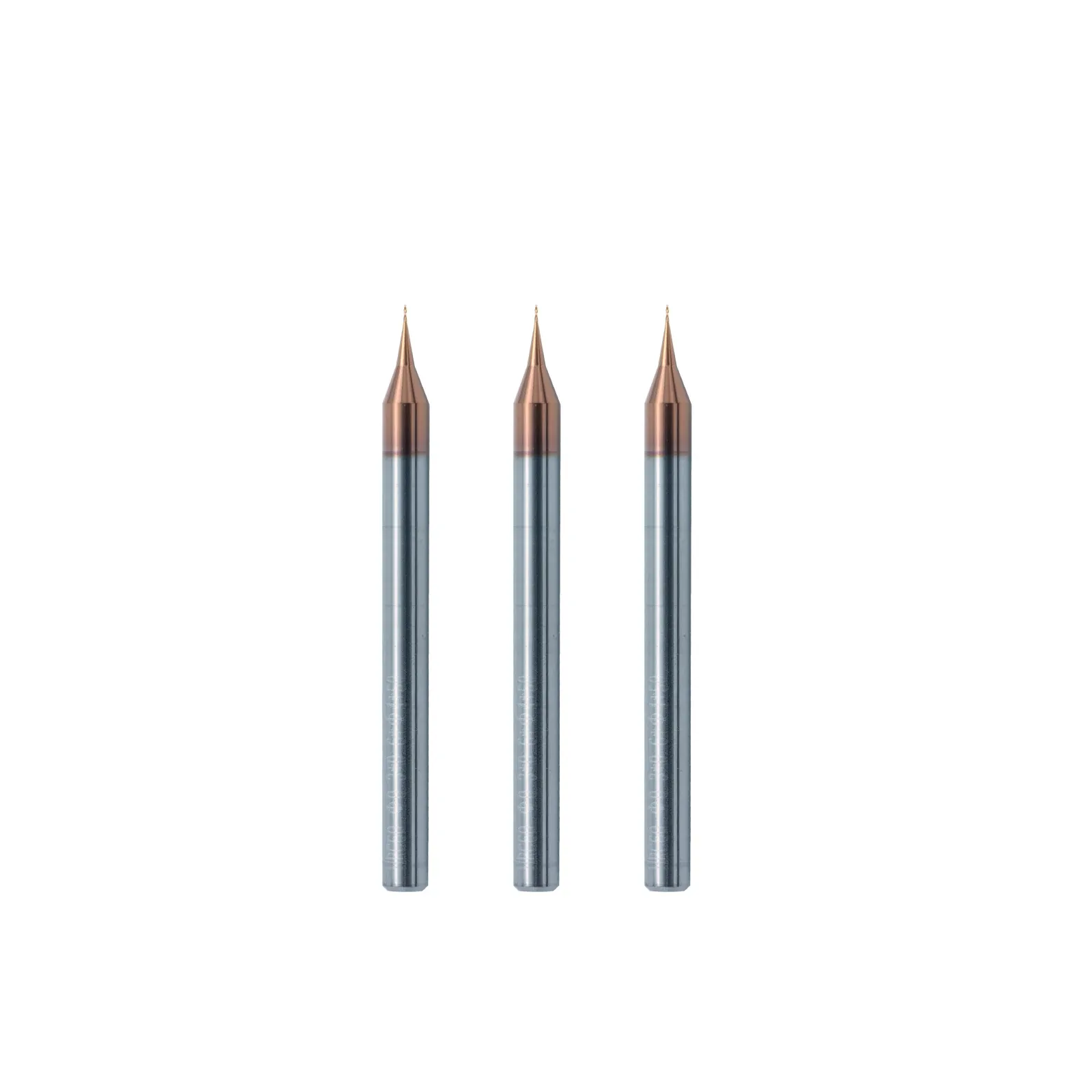

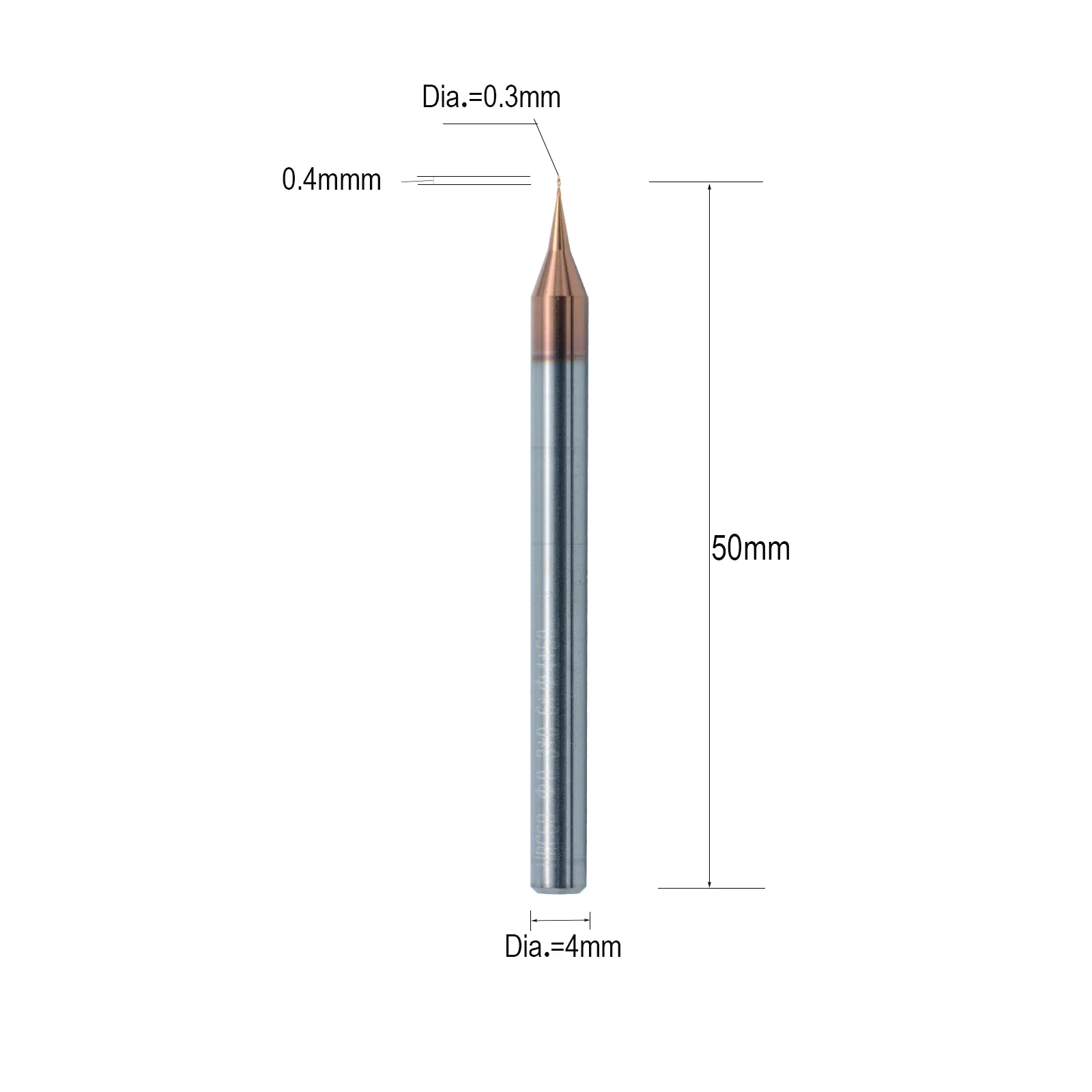

HW-MF-M-002
Micro Flat End Mill
D0.3 mm · Shank 4 mm · FL 0.6 mm · OAL 50 mm
2 flutes · HRC60 · TiSiN
Q3 $29.98

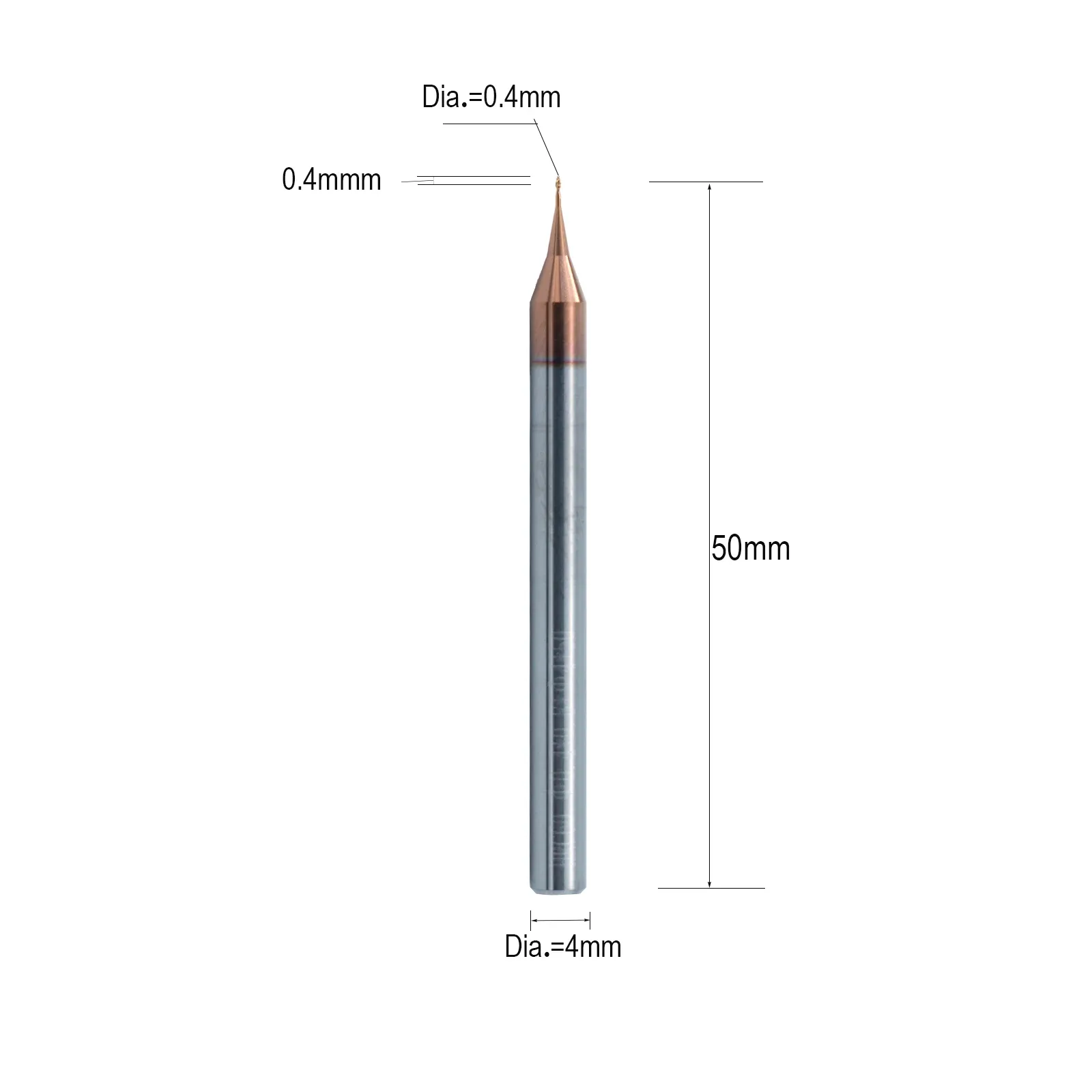

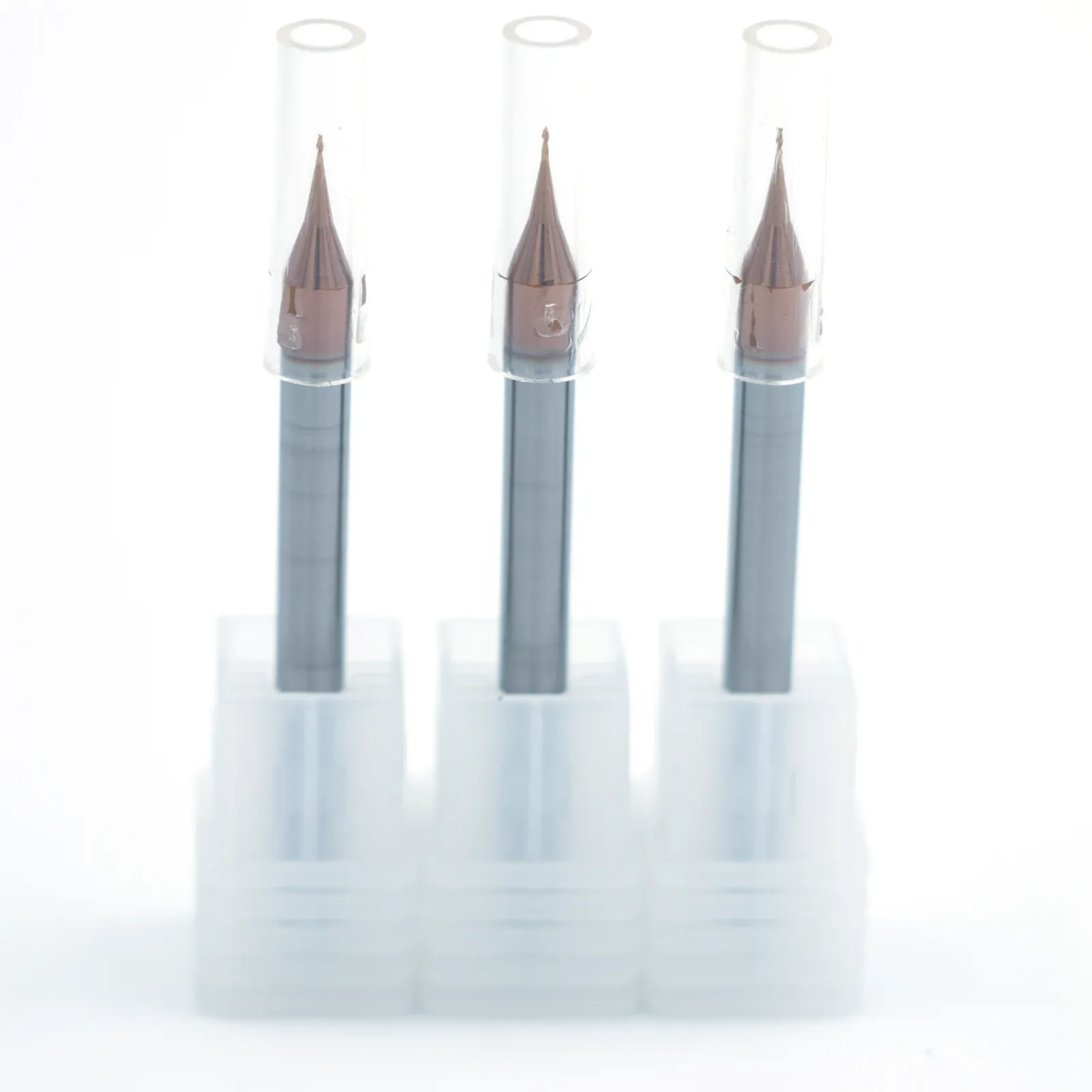

HW-MF-M-003
Micro Flat End Mill
D0.4 mm · Shank 4 mm · FL 0.8 mm · OAL 50 mm
2 flutes · HRC60 · TiSiN
Q3 $29.98

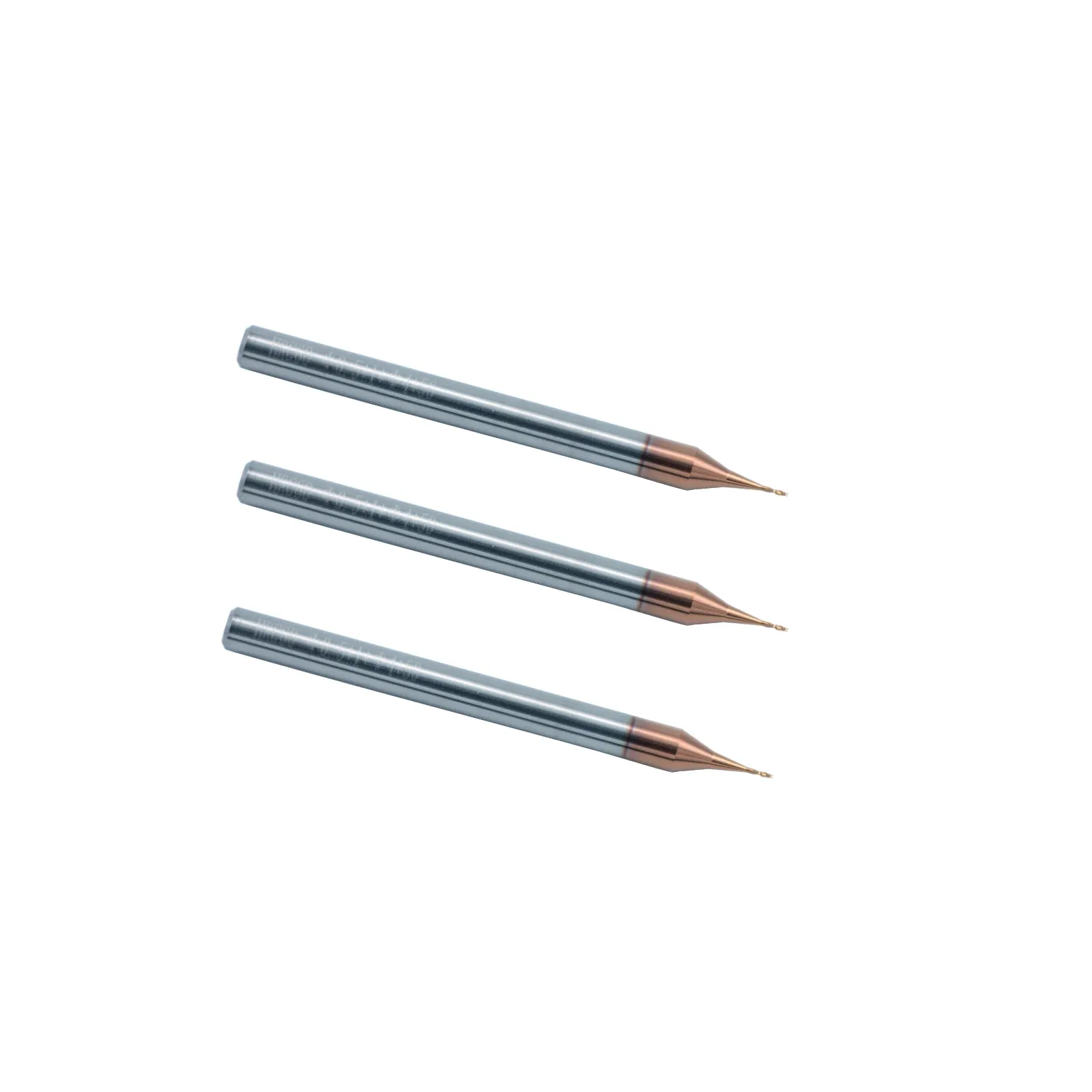

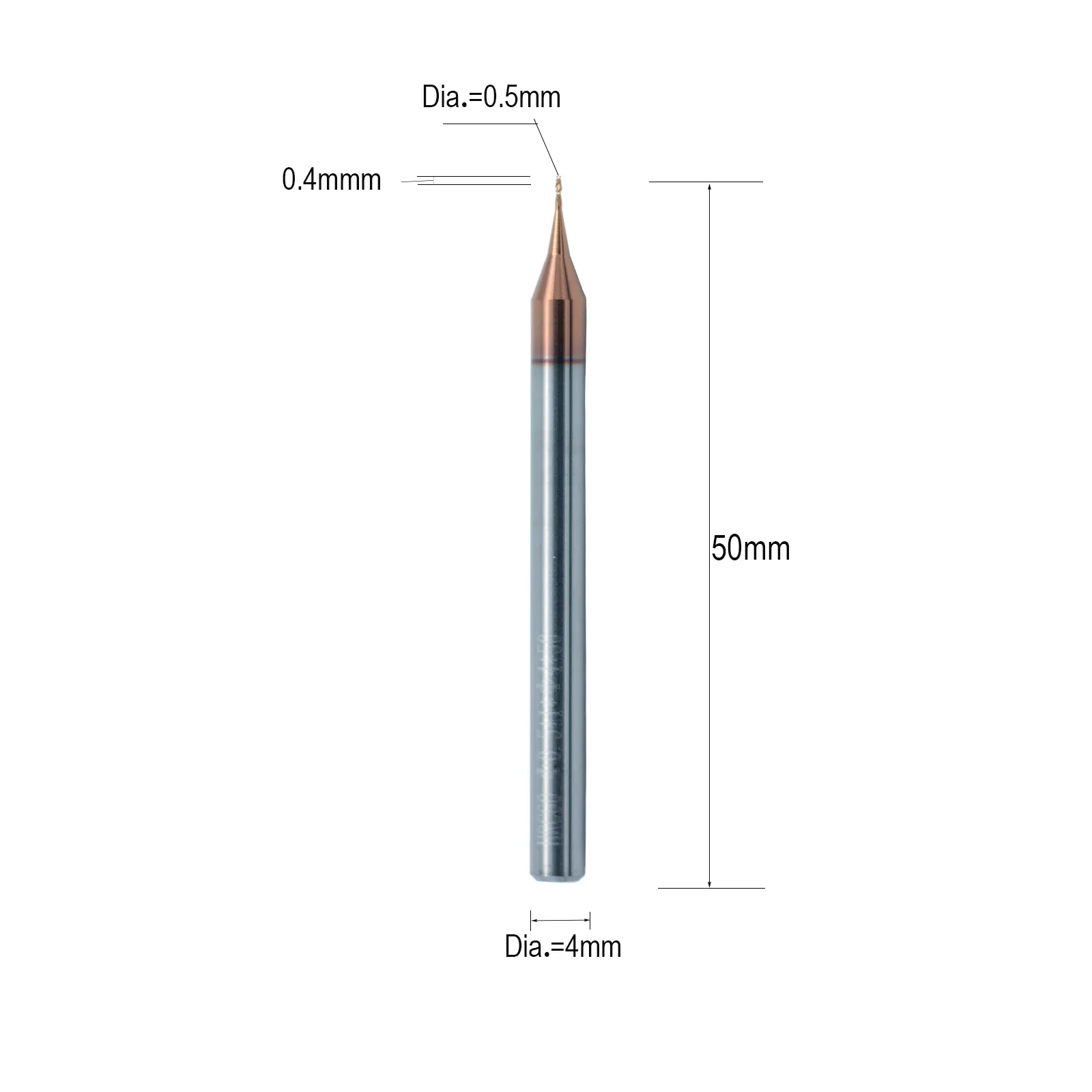

HW-MF-M-004
Micro Flat End Mill
D0.5 mm · Shank 4 mm · FL 1 mm · OAL 50 mm
2 flutes · HRC60 · TiSiN
Q3 $29.98

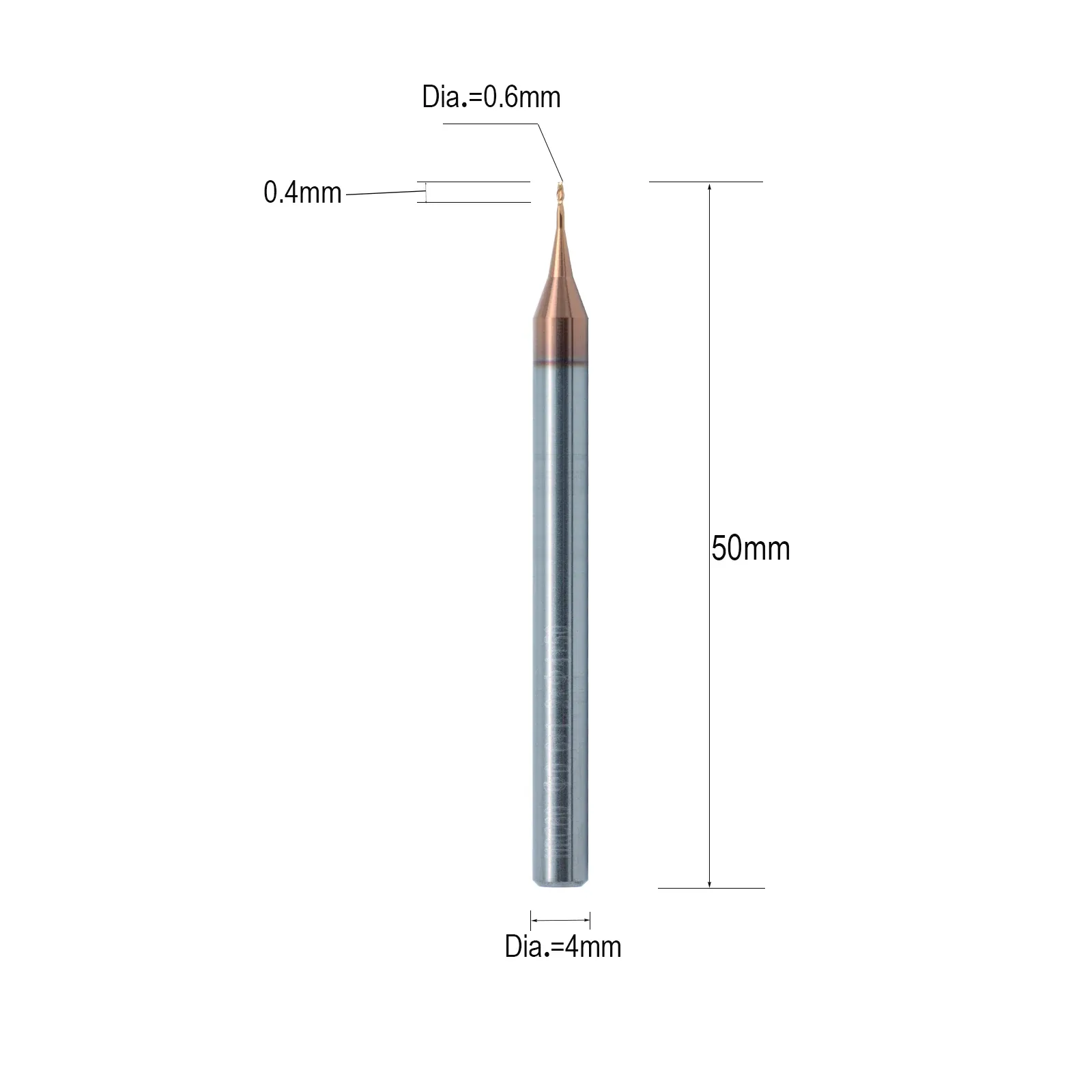

HW-MF-M-005
Micro Flat End Mill
D0.6 mm · Shank 4 mm · FL 1.2 mm · OAL 50 mm
2 flutes · HRC60 · TiSiN
Q3 $29.98
